SCANSILC 3643U Portable X-Ray Machine

SKU: SCANSILC-3643U
  • Purpose Built SCANSILC 3643U Portable X-Ray Machine
  • Rugged Construction Portable X-Ray Scanner
  • Large Active Imaging Area
  • High‑Resolution Imaging
  • Intelligent Control Electronics
  • Multiple Operating Modes
  • Effortless System Integration
  • Extended Battery Life
  • Compact and Lightweight
  • Built for Security & Defense Applications
Availability: Get In Touch

We do not offer website purchases for this item but it can be bought from us directly by calling 01722 444 806 or using the button below.

Availability:

1 in stock

Price On Request

Linear_Detection_Technology Purpose Built SCANSILC 3643U Portable X-Ray Machine

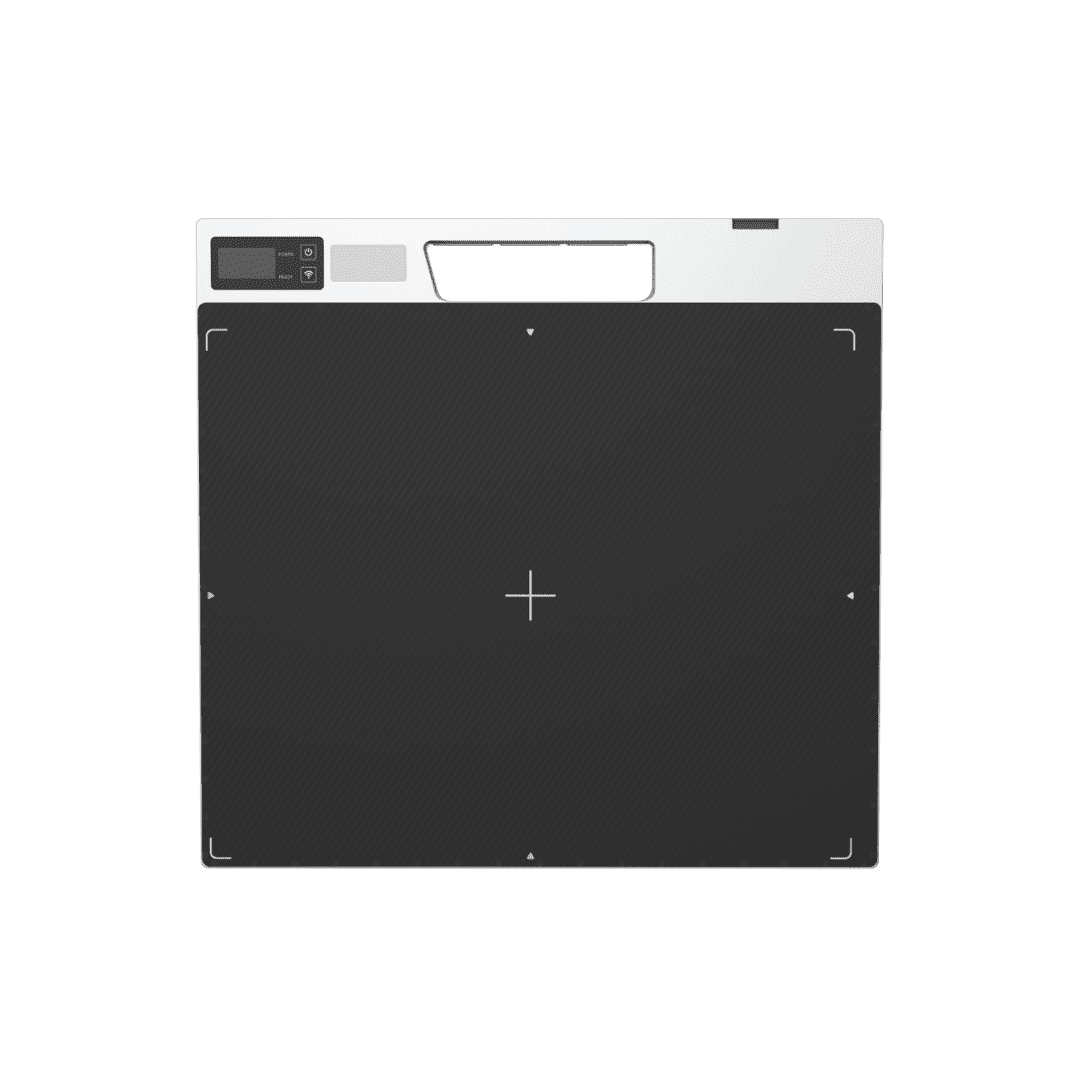

The SCANSILC 3643U Portable X-Ray Machine is a large-format digital radiography (DR) panel engineered for security, defense, and field-based inspection tasks. Built from the ground up for tough operational environments, the system delivers high-resolution imaging with professional-grade reliability and exceptional durability. Designed for operational flexibility, the SCANSILC 3643U enables rapid deployment in demanding scenarios, providing operators with clear, precise imaging for threat assessment, tactical inspections, and on-site analysis in both security and defense applications.
Nightsearcher tower pro 2k LED tripod work lamp Robust and Durable Icon Rugged Construction Portable X-Ray Scanner
This Portable X-Ray Scanner, unlike fragile medical DR panels protected by soft covers, the SCANSILC 3643U is purpose built with a ruggedized unibody design that withstands real world handling. It is IP67 rated for dust and water ingress, with robust mechanical resistance and drop tested to 1 m (3 ft) on all four corners without additional protection delivering proven durability in harsh environments.
Large Active Imaging Area
The SCANSILC 3643U Portable X-Ray Machine features a large 14 × 17 inch (approx. 353 × 430 mm) active imaging area, providing expansive coverage to capture comprehensive detail in a single frame. Its broad field of view reduces the need for multiple scans on larger targets, enabling faster, more efficient inspections while maintaining high-resolution image quality for confident threat assessment and precise object analysis.
Screen icon High Resolution Imaging

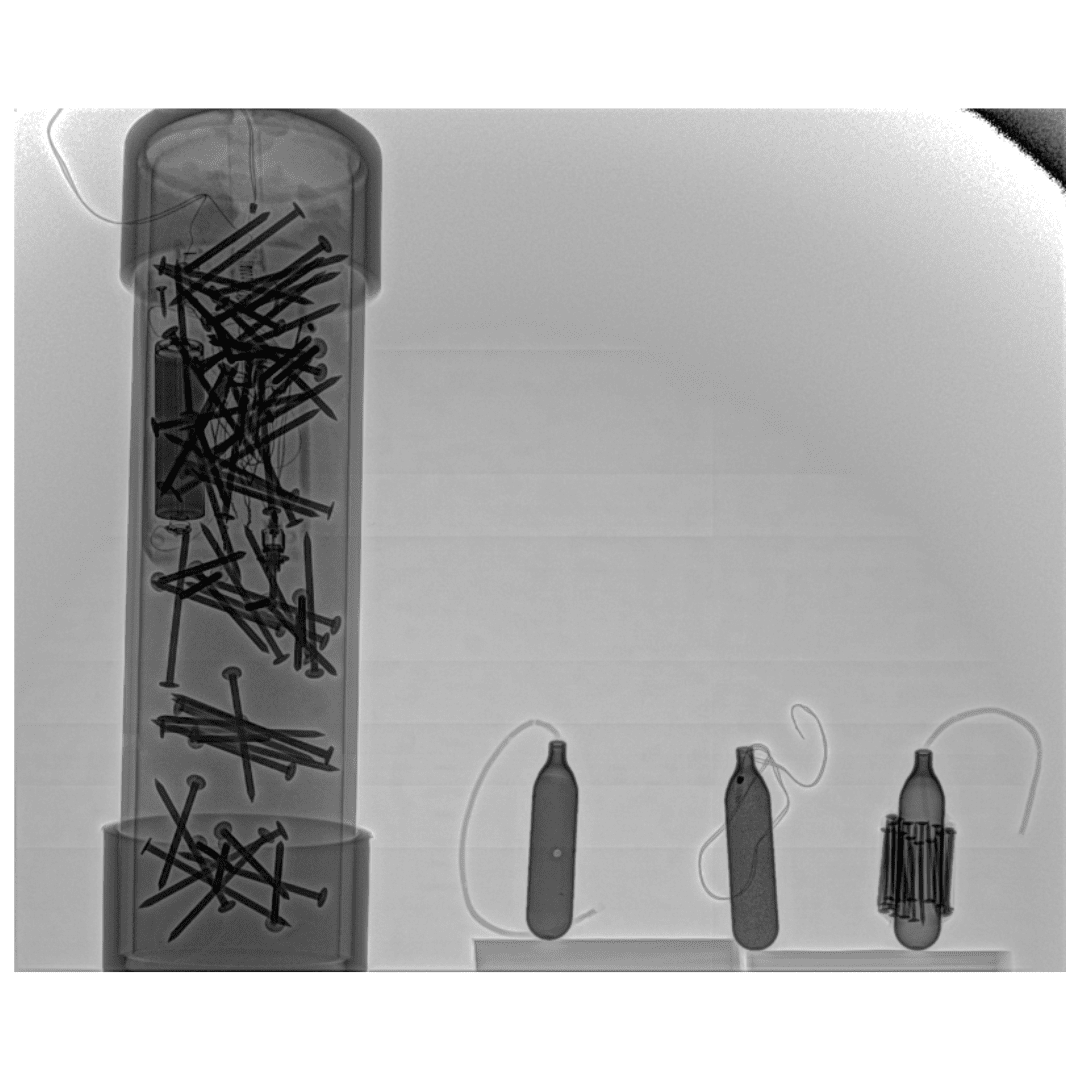

This Portable X-Ray Scanner panel produces 16-bit image data at a fine 100 µm pixel pitch, delivering 5 lp/mm spatial resolution. This high level of detail makes it ideal for accurate inspection of concealed items, structural defects, or potential threat objects, providing operators with crisp, high-definition imagery to support confident assessment and operational decision-making in security, defense, and field inspection environments.
Certified_Icon Intelligent Control Electronics
The SCANSILC 3643U Portable X-Ray Machine eliminates the need for bulky interface boxes and complex cabling, allowing for faster, more efficient deployment in the field. Its simplified setup ensures operators can position and operate the system quickly, supporting rapid inspections and high-tempo operations without compromising imaging performance or operational flexibility.
Multiple Operating Modes

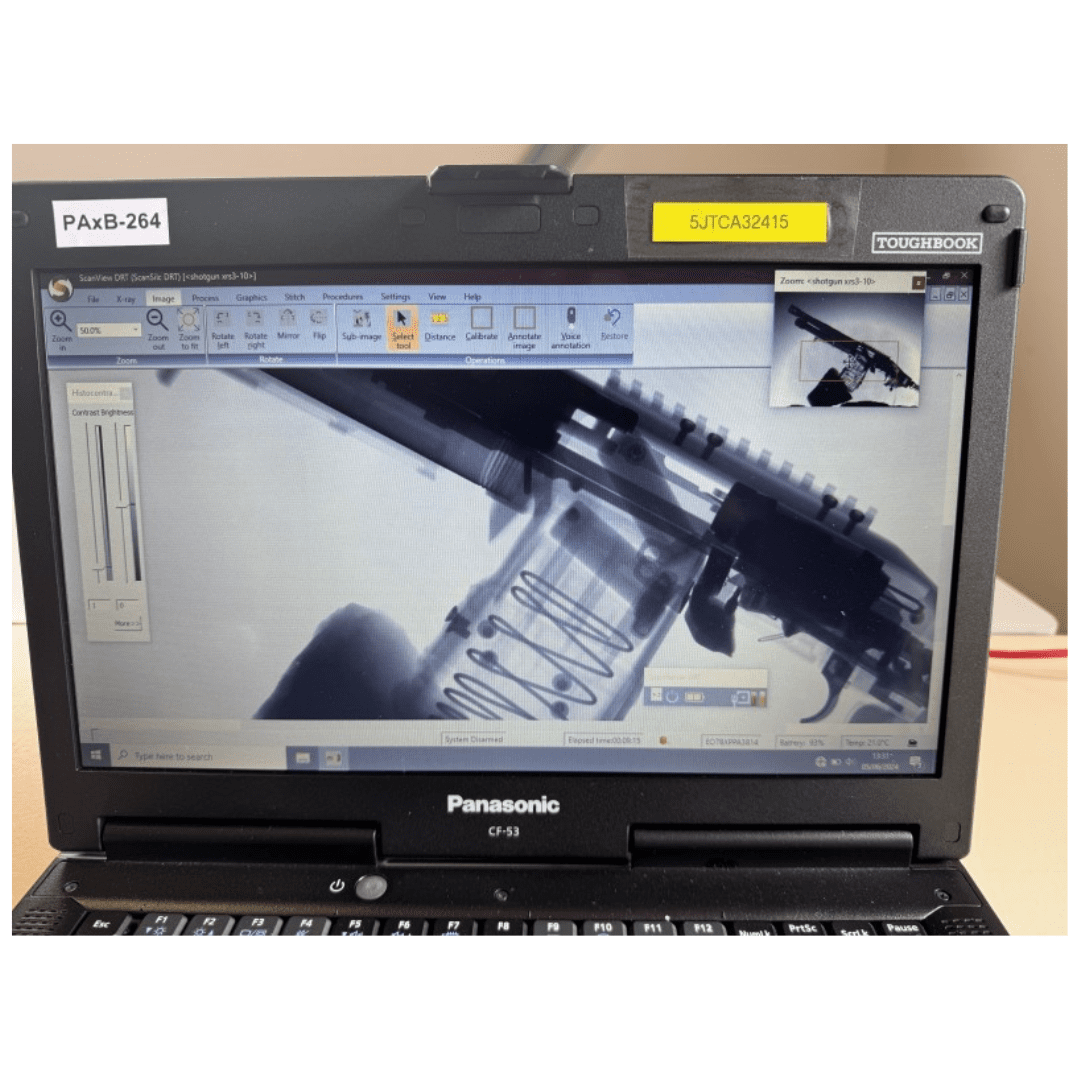

This Portable X-Ray Scanner offers versatile operational control to suit a wide range of field and on-site inspection scenarios. Synchronized Mode provides full wired or wireless control from a tablet or laptop, enabling smooth remote operation, while AED Mode delivers automatic exposure detection with manual generator firing for rapid imaging when immediate action is required. Storage Mode allows images to be captured and stored directly on the panel, ready for on-demand download, supporting efficient workflow and secure evidence retention in demanding operational environments.
Wide Detection Area Icon Effortless System Integration
The SCANSILC 3643U Portable X-Ray Machine is compatible with both pulsed and continuous potential (CP) X-ray generators, making it suitable for integration with a wide range of inspection systems. Its intelligent internal control circuitry eliminates the need for external communications boxes, reducing setup complexity and enhancing reliability in demanding operational environments. This combination of versatility and streamlined deployment ensures dependable, high-quality imaging across field, security, and tactical applications.
Extended battery life Extended Battery Life

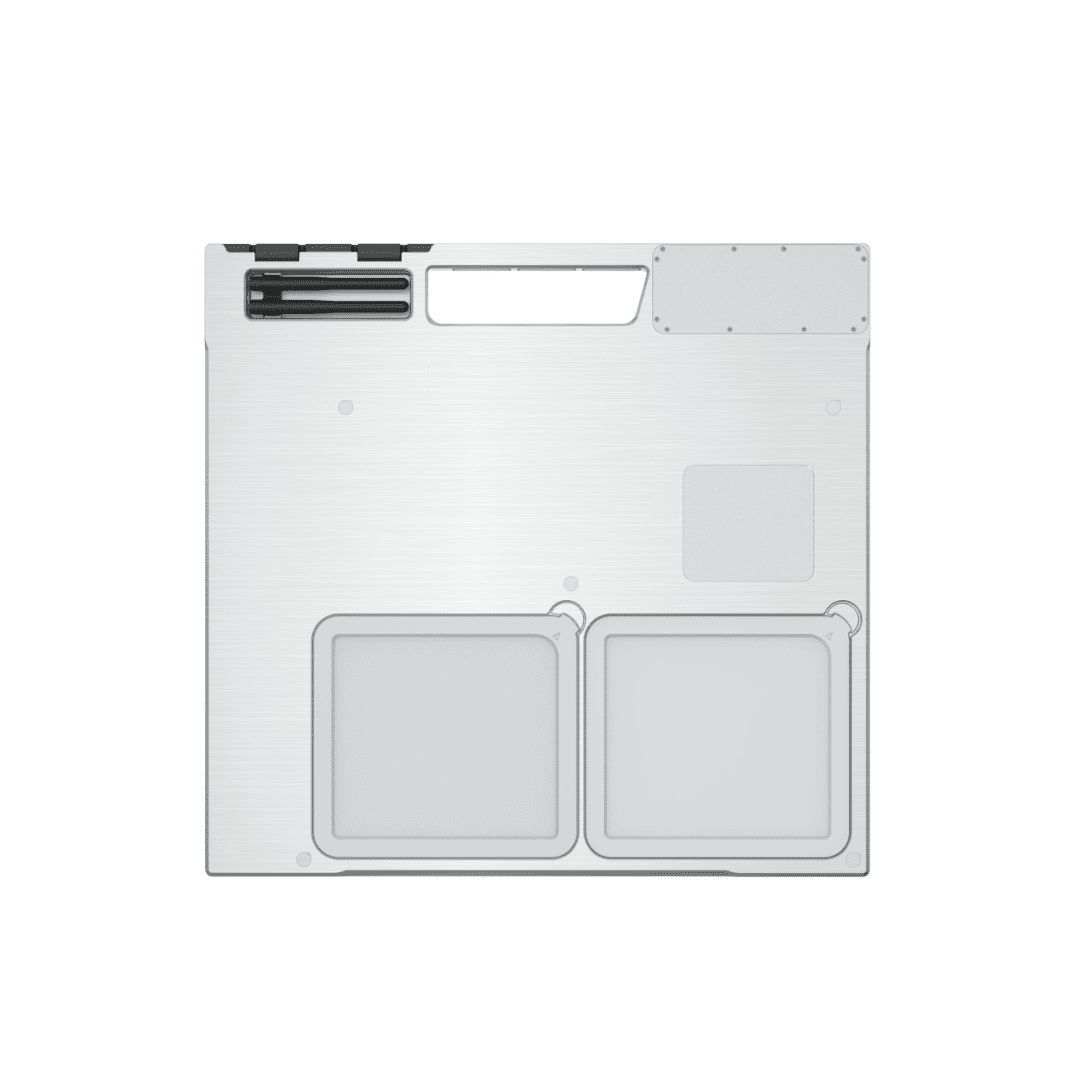

This Portable X-Ray Scanner features two built-in, hot-swappable batteries, providing extended imaging capability without the need for frequent return to base for recharging. This design maximizes uptime and productivity during prolonged field operations, ensuring continuous, reliable performance in demanding security, tactical, and inspection environments.
Compact and Lightweight
The SCANSILC 3643U Portable X-Ray Machine is designed for effortless portability and easy handling in the field. With a slim 20 mm profile and weighing just 3.9 kg, its lightweight, low-profile construction allows operators to position the panel quickly and efficiently, supporting rapid deployment in security, defense, and inspection operations where mobility and flexibility are essential.
Built for Security & Defense Applications
This Portable X-Ray Scanner is engineered for demanding operational tasks, from threat screening and counter-surveillance to defensive inspection operations. It combines robust construction, high-resolution imaging, and a flexible control architecture, making it a formidable tool for professionals who require reliable, detailed radiographic performance outside controlled environments. Its design ensures precision, durability, and operational versatility, supporting confident assessment and rapid decision-making in the field.
Model / Part Number SCANSILC-3643U
Type Digital Radiography (DR) Portable X‑Ray Panel / Detector
Nominal Image Area 360 x 430 mm
Active Image Area 353.4 x 430.2 mm
Pixel Pitch 100 micron
Resolution 5 lp/mm
Physical Dimension 457.2 (w) x 435.5 (h) x 20 (d) mm
Weight 3.9 kg
Environmental Protection IP67 (Dust and water resistance)
Drop Test 1m on all 4 corners
Bottom Dead Area 3 mm
Long Battery Life Dual in-panel batteries and hot-swappable spare battery providing extended field operational capability.
Application Security, Defense, EOD and Field X‑Ray Inspection
