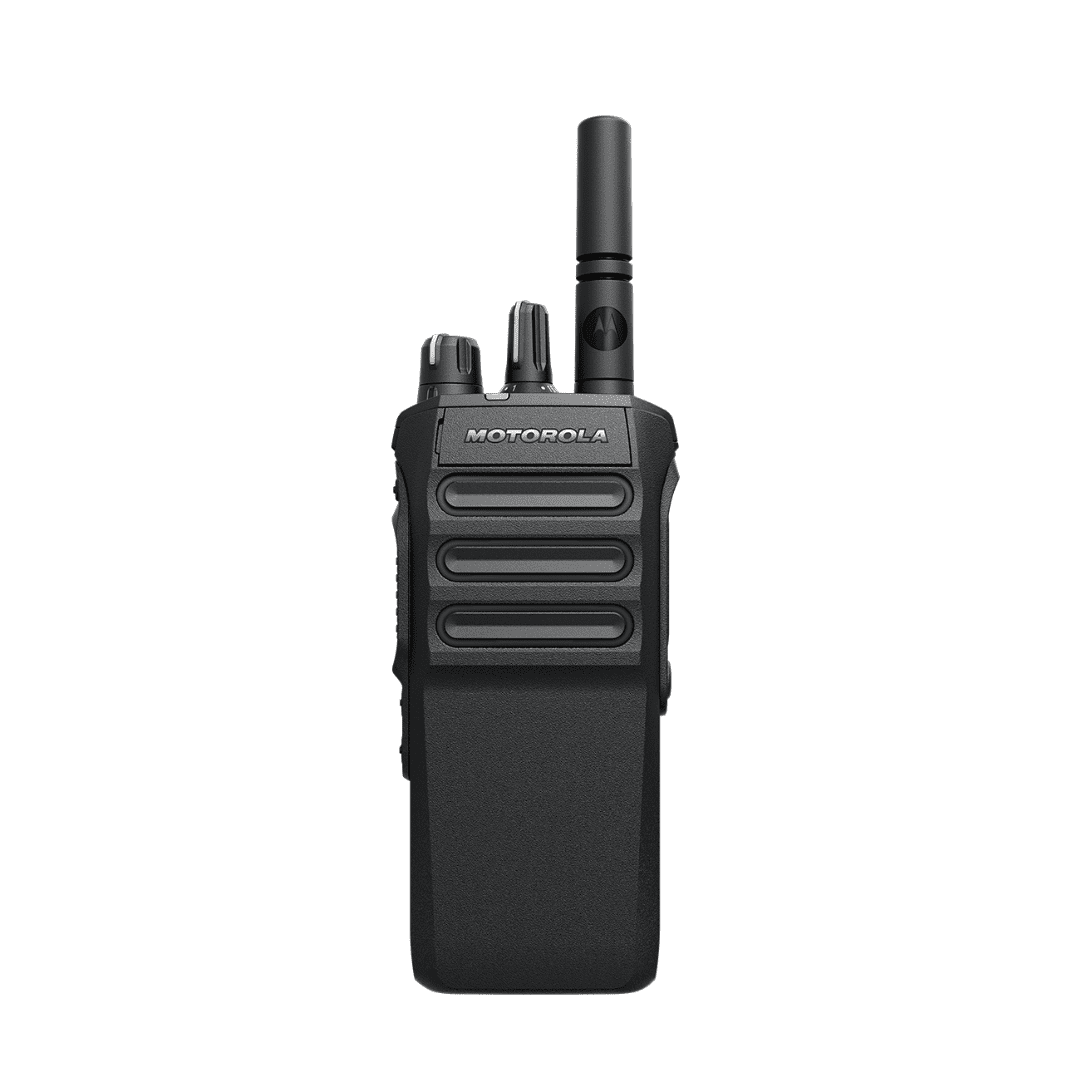

Motorola R7 NKP Digital Handheld Radio

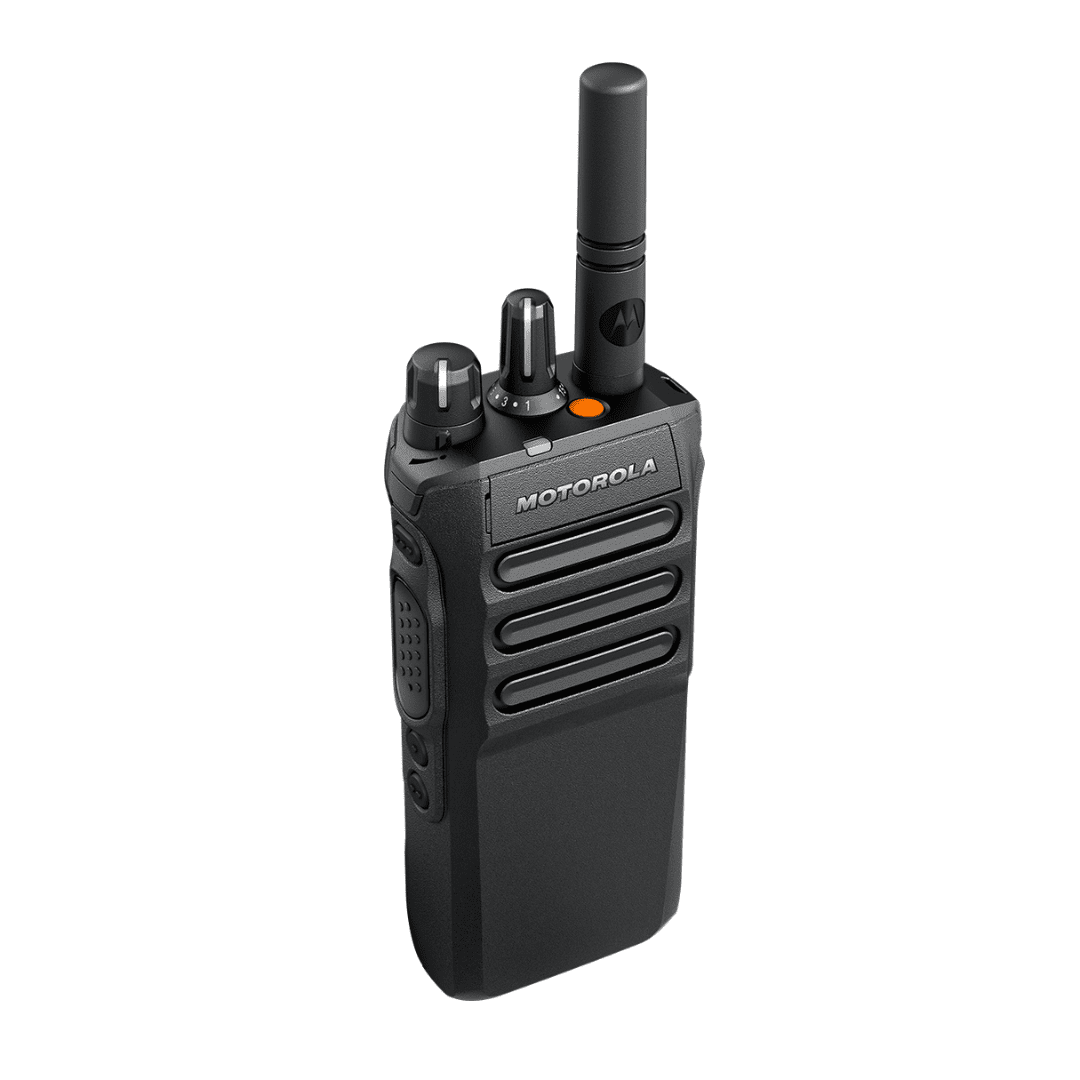

Motorola R7 NKP Digital Handheld Radio - Image 2

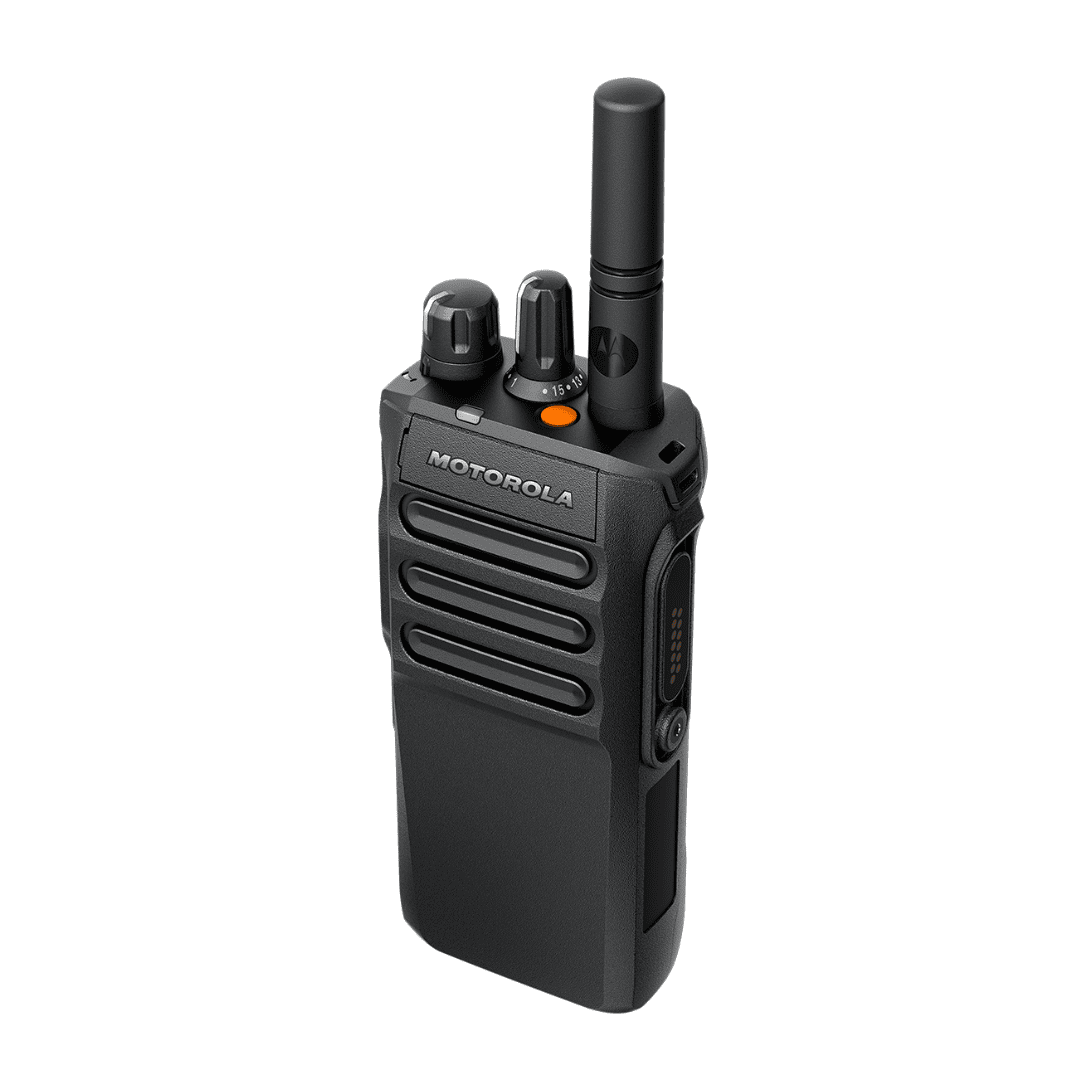

Motorola R7 NKP Digital Handheld Radio - Image 3

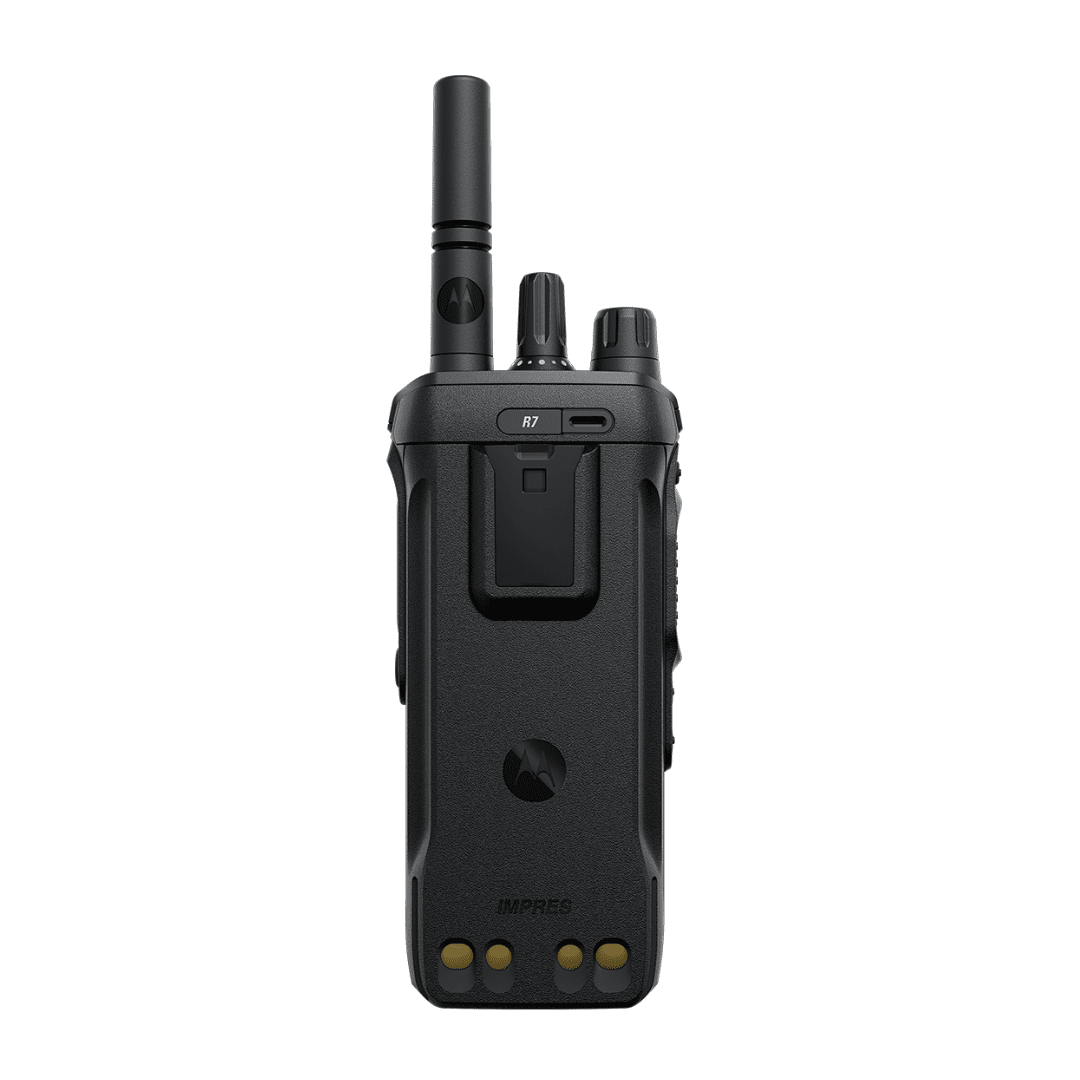

Motorola R7 NKP Digital Handheld Radio - Image 4
,

Motorola R7 NKP Digital Handheld Radio

SKU: MTR7NKP
  • Rugged, Portable Motorola R7 NKP Digital Handheld Radio
  • Digital and Analogue Operation Motorola Radio
  • Advanced Audio Processing
  • Lone Worker Support
  • Dedicated Emergency Button
  • Compact and Ergonomic Design
  • Bluetooth and Wi-Fi Connectivity
  • No-Keypad Design
  • Optional AES-256 Encryption
  • IMPRES Battery Management
  • IP68 & IP66 Protection
  • MIL-STD-810 Rugged Construction
  • MOTOTRBO System Compatibility
  • Professional Connectivity & Accessories
  • Leading US Manufacturer
Availability: Get In Touch

We do not offer website purchases for this item but it can be bought from us directly by calling 01722 444 806 or using the button below.

Availability:

1 in stock

£646.34 (incl. VAT)

MK4 Durable Rugged, Portable Motorola R7 NKP Digital Handheld Radio
The Motorola R7 NKP Digital Handheld Radio is a rugged, professional digital portable two-way radio designed to provide clear, dependable communications in demanding working environments. As a No Keypad (NKP) model, the R7 has a simplified design without a display or keypad, providing straightforward push-to-talk operation while retaining the rugged construction and advanced audio processing of the MOTOTRBO R7 platform.
Digital and Analogue Operation Motorola Radio
This Motorola Radio is built on the MOTOTRBO digital radio platform, with the R7 NKP supporting both analogue and digital operation. This makes it suitable for organisations that need to maintain compatibility with existing radio systems while benefiting from the advantages of digital communications. The UHF version operates across the 400–527 MHz frequency range and provides up to 4 W of high-power output, with support for up to 64 channels.
Advanced Audio Processing
The Motorola R7 NKP Digital Handheld Radio is designed to provide loud and intelligible communications, even where background noise can make radio conversations difficult. Its advanced audio processing includes AI-trained noise suppression, adaptive dual-microphone noise cancellation, automatic acoustic feedback suppression, received audio levelling and intelligent audio. The radio also features a wideband speaker and microphones, while programmable loudness can reach up to 107 phons in Extra Loud Mode. Audio output is rated at 1 W, with a maximum output of 3 W.
Lone_Worker_Icon Lone Worker Support
This Motorola Radio supports Lone Worker functionality, allowing the radio to be incorporated into communication systems where additional protection is required for personnel working alone. The radio also provides dedicated emergency functionality, giving users a straightforward way to initiate emergency communication when assistance is required. Man Down/Fall Alert is available as an optional upgrade on the R7 Capable model, rather than being included as standard. This provides organisations with the flexibility to add additional worker safety functionality according to their operational requirements.
Dedicated Emergency Button
The Motorola R7 NKP Digital Handheld Radio features a dedicated emergency button that provides users with a quick and accessible way to initiate an emergency communication. The button can be programmed to support emergency procedures within the radio system, helping users quickly alert colleagues or designated personnel when assistance is required.
Compact and Ergonomic Design
This Motorola Radio features a compact and ergonomic design, measuring approximately 131.8 x 56 x 31.3 mm when fitted with the 2200 mAh Slim IMPRES battery. The radio weighs approximately 289 g, excluding the antenna and General Option Board. Designed for comfortable carrying during extended shifts, the R7 NKP combines a compact form factor with durable construction. Its programmable controls provide quick access to frequently used functions, allowing users to operate the radio efficiently without the need to navigate a display or keypad.
Bluetooth and Wi-Fi Connectivity
The Motorola R7 NKP Digital Handheld Radio features Bluetooth 5.2 and dual-band 2.4 GHz and 5 GHz Wi-Fi, providing flexible wireless connectivity for professional users. Bluetooth supports compatible audio and data connections, while Wi-Fi enables features such as over-the-air software updates on applicable configurations, helping simplify radio management and maintenance.
No-Keypad Design
This Motorola Radio is designed without a screen or keypad, providing a straightforward interface for users who need quick and simple radio operation. With no menus or keypad input to navigate, the radio keeps essential controls easily accessible for day-to-day communications. The R7 NKP features three programmable side buttons and a programmable top orange button, allowing frequently used functions to be assigned to convenient controls. A 16-position channel knob provides quick and simple channel selection, helping users change channels without navigating through on-screen menus.
Encrypted Icon Optional AES-256 Encryption
The Motorola R7 NKP Digital Handheld Radio includes a range of privacy and security features designed to help protect professional radio communications. Basic Privacy and Enhanced Privacy are supported, with AES-256 encryption available as an option. The radio also supports Radio Inhibit/Disable and authenticated radio disable and remote monitoring functionality. These features provide organisations with additional control over radio access and communications, particularly when managing larger fleets across a professional radio system.
Decent Battery Life Icon IMPRES Battery Management
This Motorola Radio is supplied with a 2200 mAh Slim IMPRES Li-Ion battery (PMNN4807), providing reliable operating time for professional communications. Motorola specifies a typical battery life of approximately 19 hours in UHF digital mode and 14.5 hours in analogue mode, based on its stated test conditions. Actual battery life will vary depending on usage, transmit time, radio configuration and operating conditions. The R7 platform also supports higher-capacity battery options, including the 2450 mAh PMNN4808, 2850 mAh IMPRES PMNN4809 and 3200 mAh HAZLOC IMPRES PMNN4810. The battery selected will affect the radio’s weight, dimensions and operating time.
Weather_Resistant_Icon IP68 & IP66 Protection
The Motorola R7 NKP Digital Handheld Radio is built for demanding professional environments, with an IP68 water immersion rating and IP66 protection against dust and water ingress. This provides protection when the radio is exposed to rain, dirt, dust or accidental immersion, making it suitable for use across a range of challenging working conditions. The Motorola R7 is also designed and tested for demanding operating environments, with an operating temperature range of approximately -20°C to +60°C. This allows the radio to maintain reliable operation across a wide range of temperatures.
Robust_Icon MIL-STD-810 Rugged Construction
This Motorola Radio is designed for professional use and built to withstand the demands of challenging working environments. The Motorola R7 is ruggedised and tested to applicable MIL-STD-810 standards, helping ensure it can withstand the rigours of everyday professional use. The radio’s housing is also resistant to disinfectant and decontamination substances, making it suitable for environments where regular cleaning is required. A robust, corrosion-resistant side connector provides additional durability and helps protect the radio during demanding day-to-day operation.
Certified_Icon MOTOTRBO System Compatibility
The Motorola R7 NKP Digital Handheld Radio can be integrated into existing MOTOTRBO radio systems and supports a range of professional system configurations, including analogue conventional, digital conventional, Dual Capacity Direct Mode, IP Site Connect, Capacity Plus Single Site, Capacity Plus Multi Site and Capacity Max. The radio also supports CPS 2.0 and Radio Management, together with over-the-air programming via DMR and other management functions depending on the configuration.
Accessories_Icon Professional Connectivity & Accessories
This Motorola Radio is supported by a comprehensive range of Motorola accessories, allowing the radio to be adapted to different working environments. Compatible accessories include remote speaker microphones, earpieces, surveillance accessories, headsets, batteries, belt clips, carrying accessories and charging solutions.
Made_in_the_USA Leading US Manufacturer
The Motorola R7 NKP Digital Handheld Radio is manufactured by Motorola Solutions, a leading provider of professional communication technology. With decades of experience in two-way radio communications, Motorola Solutions combines advanced technology with robust engineering to deliver reliable communication solutions designed for demanding professional environments.
Radio Type Digital Portable Two-Way Radio
Model MOTOTRBO R7 Non-Keypad
Configuration NKP – No Keypad
Frequency band VHF / UHF / 800–900 MHz, depending on regional model
VHF Frequency 136–174 MHz
UHF Frequency 400–527 MHz
800/900 MHz Frequency 806–825 MHz, 851–870 MHz, 896–902 MHz, 935–941 MHz, where supported
High Power Output VHF: 5 W; UHF: 4 W; 800/900 MHz: 2.5 W
Low Power Output 1 W
Channel Spacing 12.5 / 20 / 25 kHz
Channel Capacity 64 channels
Display None
Digital / Analogue Yes
Digital Protocol DMR Tier II / Tier III
Power Supply 7.5 V nominal
Emergency button Yes
Lone worker Yes
Man Down / Fall Alert Yes
AES-256 encryption capability Yes
GNSS Yes
Bluetooth 5.2
Wi-Fi 2.4 / 5 GHz
Operating Temperature -20°C to +60°C
Ingress Protection IP66 / IP68
IP68 Submersion Up to 2 m for 2 hours
MIL Standard MIL-STD 810
MOTOTRBO R7 WITH 2200 MAH SLIM IMPRES LI-ION BATTERY (PMNN4807)
Dimensions (h x w x d) 131.8 x 56 x 31.3 mm (5.2 x 2.2 x 1.2 in.)
Weight 289 g (10 oz)
Digital / Analogue
Battery Life¹		 20 / 15 hrs | 19 / 14.5 hrs | 19 / 14.5 hrs | 19 / 15.5 hrs
MOTOTRBO R7 WITH 2450 MAH LI-ION BATTERY (PMNN4808)
Dimensions (h x w x d) 131.8 x 56 x 37.3 mm (5.2 x 2.2 x 1.5 in.)
Weight 319 g (11 oz)
Digital / Analogue
Battery Life¹		 22 / 17 hrs | 21.5 / 16.5 hrs | 21.5 / 16.5 hrs | 21.5 / 17.5 hrs
MOTOTRBO R7 WITH 2850 MAH IMPRES LI-ION BATTERY (PMNN4809)
Dimensions (h x w x d) 131.8 x 56 x 31.3 mm (5.2 x 2.2 x 1.2 in.)
Weight 306 g (11 oz)
Digital / Analogue
Battery Life¹		 26 / 19.5 hrs | 25 / 19 hrs | 25 / 19 hrs | 25 / 20.5 hrs
MOTOTRBO R7 WITH 3200 MAH HAZLOC IMPRES LI-ION BATTERY (PMNN4810)
Dimensions (h x w x d) 131.8 x 56 x 37.3 mm (5.2 x 2.2 x 1.5 in.)
Weight 339 g (12 oz)
Digital / Analogue
Battery Life¹		 29 / 22 hrs | 28 / 21.5 hrs | 28 / 21.5 hrs | 27.5 / 22 hrs
