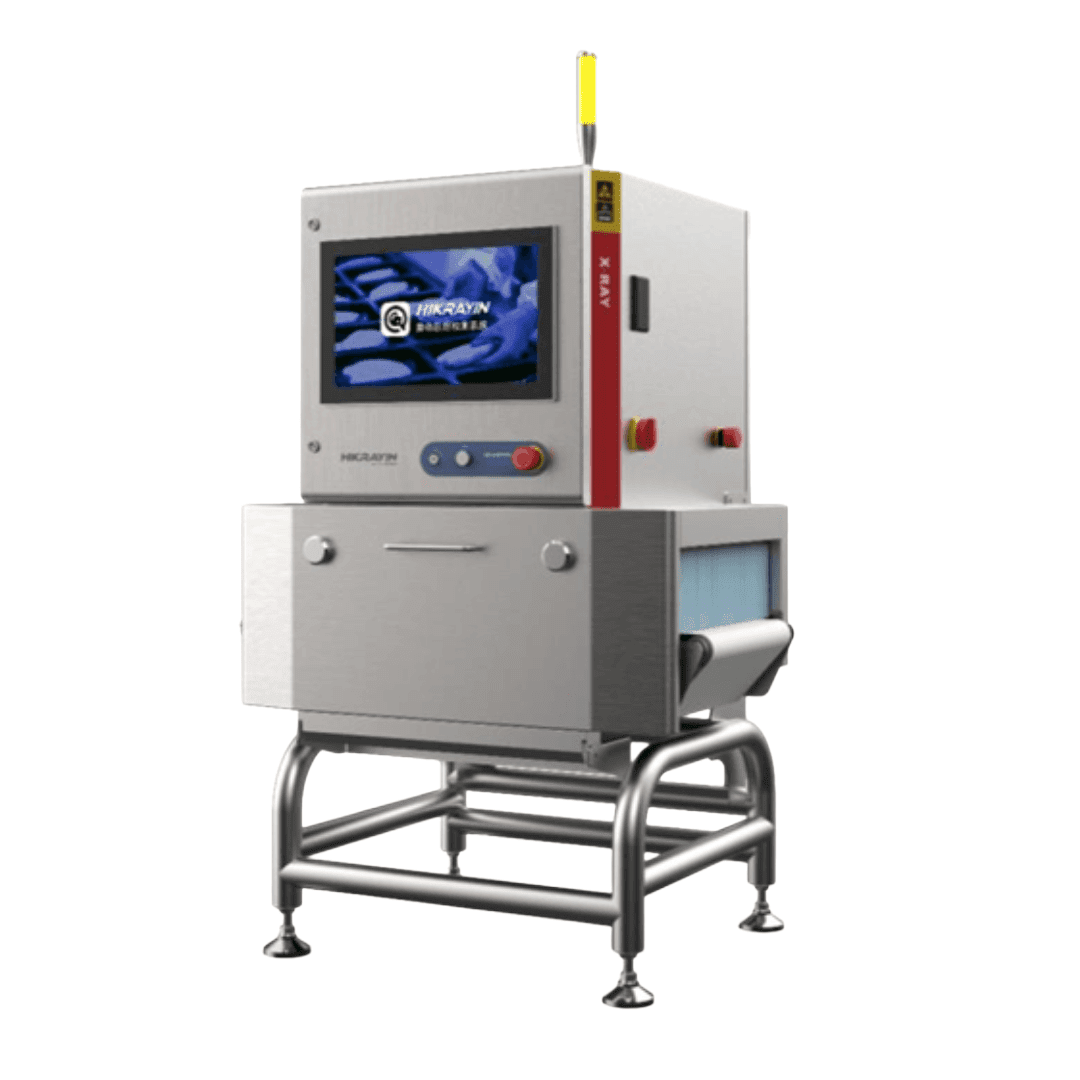

Hikrayin Intelligent X-ray Defect Detection System (ISD-NFB4016B-A3)
,

Hikrayin Intelligent X-ray Defect Detection System (ISD-NFB4016B-A3)

SKU: ISD-NFB4016B-A3
  • Advanced Hikrayin ISD‑NFB4016B‑A3 Intelligent X‑Ray Defect Detection System
  • High‑Definition X‑Ray Imaging
  • AI‑powered Defect Recognition
  • Enhanced Image Processing
  • Flexible Inspection Workflows & Integration
  • Automated Analysis
  • Wide Range of Application Scenarios
  • Traceability, Reporting & Quality Assurance
Availability: Get In Touch

We do not offer website purchases for this item but it can be bought from us directly by calling 01722 444 806 or using the button below.

Availability:

1 in stock

Price On Request

Linear_Detection_Technology Advanced Hikrayin ISD NFB4016B A3 Intelligent X Ray Defect Detection System
The Hikrayin Intelligent X-ray Defect Detection System (ISD-NFB4016B-A3) is an advanced industrial X ray inspection system purpose built for non-destructive testing, quality control and defect detection in manufacturing environments. Designed to inspect components, assemblies or finished products internally, it supports detection of hidden defects, foreign inclusions, structural flaws or anomalies that are otherwise invisible to the naked eye.
Official Icon High-Definition X Ray Imaging
This X-ray Defect Detection System utilizes a high performance X ray imaging engine, delivering detailed internal images with sufficient resolution to reveal fine defects, foreign particles, misalignments or structural irregularities inside components or assemblies. The use of advanced image processing algorithms helps enhance contrast, reduce noise and deliver clearer internal visuals.
AI powered Defect Recognition
The Hikrayin Intelligent X-ray Defect Detection System (ISD-NFB4016B-A3) integrates intelligent detection algorithms that automatically analyze X ray images to identify defects such as voids, foreign objects, missing parts, misalignments or abnormal internal structures. This automated analysis reduces reliance on manual inspection and significantly increases consistency across large production volumes.
Certified_Icon Enhanced Image Processing
This X-ray Defect Detection System allows operators to perform comprehensive image review using a suite of adjustable settings. Features include zoom and magnification, contrast and brightness adjustments, density filtering, negative/positive inversion, and multi-angle or slice-by-slice inspection where supported. These capabilities enable thorough analysis of internal structures, helping to identify defects and irregularities with precision and confidence. Designed for industrial and quality-control applications, the system ensures reliable detection and detailed visual assessment, supporting consistent operational standards and improved product safety.
Highly_Flexible_Armour Flexible Inspection Workflows & Integration
The Hikrayin Intelligent X-ray Defect Detection System (ISD-NFB4016B-A3) is designed for both offline batch inspection where components or assemblies are loaded for periodic quality checks and inline or near line inspection when integrated into production workflows. This flexibility allows adaptation to a range of manufacturing processes, from small batch prototyping to high-volume production lines. The system’s software is user friendly and supports straightforward operation by trained staff. Its interface allows defect review, image annotation, report generation and export of inspection data such as X ray images, defect logs, statistics supporting traceability, audit trails, quality management and reporting.
Search_Record_Icon Automated Analysis
This X-ray Defect Detection System allows X-ray inspection parameters and detection templates to be saved and reused, ensuring each scan follows a fully standardized and repeatable inspection cycle. Once configured, the system automatically applies consistent evaluation criteria across all inspected units, eliminating operator-to-operator variation and supporting robust quality control practices.
Wide Detection Area Icon Wide Range of Application Scenarios
The Hikrayin Intelligent X-ray Defect Detection System (ISD-NFB4016B-A3) is designed for a wide range of industrial inspection tasks. Including electronics manufacturing (PCBs, SMT assemblies, BGAs and semiconductors), battery and energy component production, mechanical and metal parts fabrication, as well as quality control laboratories and inspection facilities requiring reliable detection of internal defects and structural anomalies.
Official Icon Traceability, Reporting & Quality Assurance
This X-ray Defect Detection System is designed to support rigorous industrial quality processes. The system allows all inspection data including raw X-ray images, enhanced processed views, analysis outputs and detailed defect logs to be fully archived and exported. This ensures seamless compliance with internal and external standards, enabling robust batch traceability, clear documentation trails, and smooth integration into rework or reject workflows. Its advanced internal-flaw detection capabilities help identify issues at the earliest possible stage, reducing production waste, minimizing the risk of recalls or field failures, and ultimately lowering operational costs. By delivering consistent, high-accuracy results, the system enhances overall manufacturing quality, reliability and confidence across demanding production environments.
System Dimensions 2042 mm (L) x 1308 mm (W) x 1056 mm (H)
Tunnel Size 400 mm (H) × 160 mm (W)
Conveyor width 440 mm
Conveyor Height 800 mm adjustable
Conveyor Speed 10 ~ 60 m/min
Maximum Capacity 10 kg
Anode Voltage & Cooling 40 ~ 80 kV
Tube Current 4000 ~ 8000 μA
Generator Power Consumption 350W max
Detector 0.1 mm
Power Supply 230 VAC (±10%)  50±3Hz
Operating Temperature/Humidity -10°C ~ 40°C / 5% ~ 97% (non-condensing)
IP Protection IP66
Radiation Protection 4 Layers of Lead for both Entrance and Exit
Radiation Leakage < 1μSv/h
Ports Network, USB, MES Connection
