SKU: GT-PD6500i
  • Industry Leading Walkthrough Metal Detector
  • 33 Target Detection Zones
  • Adjustable Highly Sensitive Scanner
  • Adjustable Alarms
  • Tamper Resistance Features
  • Wide 30” Doorway
  • Built In Traffic Counter
  • IP55 Rated
  • Very Widley Tested & Certified
  • Fast 30 Minute Assembly
  • Mains Powered
  • Rugged Aluminium Casing
  • 2 Year Manufacturer’s Warranty
Availability: Get In Touch

We do not offer website purchases for this item but it can be bought from us directly by calling 01494 446965 or using the button below.

£5,995.00 (Incl.VAT)

Favourite
Compare
Metal Detector UK Icon Industry Leading Walkthrough Metal Detector
Garrett Walkthrough Metal Detectors, like their handheld models, are among the most widely used metal detection devices in the world. The PD6500i is Garrett’s top of the line model and comes with a whole host of features including targeted detection zones, up to 200 sensitivity levels, selectable programs and more. Sometimes called a knife arch, metal detector door or doorway, they are a common site at airports, prisons and events around the world.

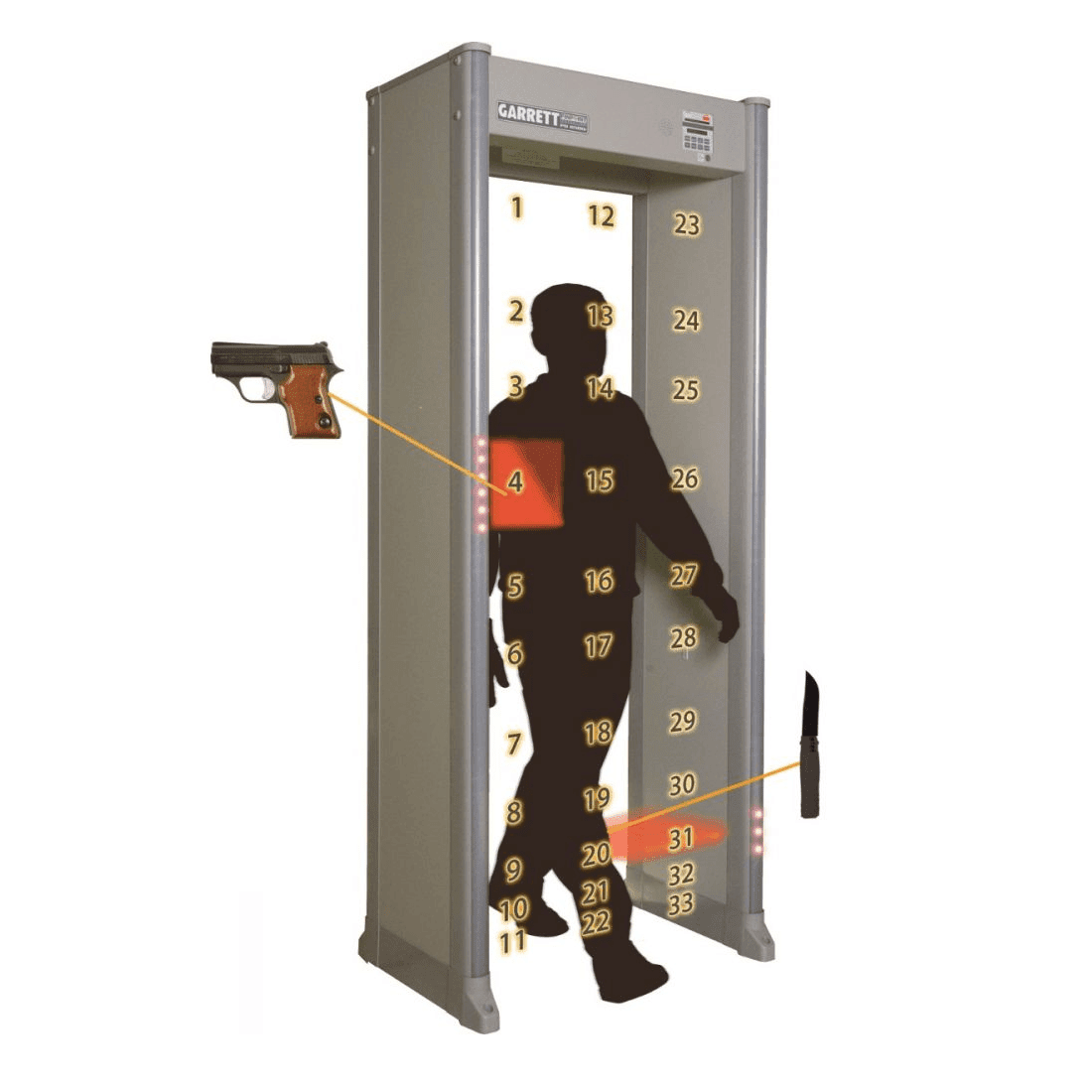

Targeted Zones Icon 33 Targeted Detection Zones
The Garrett PD6500i Walkthrough Metal Detector is an advancement on traditional walkthrough metal detector doors which used a binary pass fail mechanism. The P6500i uses LEDs built into the device’s frame to notify the operator where the mass of metal is on the target’s body. This feature drastically speeds up searches which is essential in high traffic environments such as airports and exhibition centres. There are 33 zones that can be used to determine where the metal is on the target’s body.
Adjustable_Sensitivity_Metal_Detector Adjustable Highly Sensitive Scanner
The Garrett PD6500i Walkthrough Metal Detector has a very large number of distinct sensitivities that can be cycled through. They allow operators the ability to target specific sizes of metal associated with specific weapons or contraband. This allows you to filter out non-target items such as coins and screws. Alternatively, it can be set to pick up smaller pieces should you wish.
Adjustable_Alarm Adjustable Alarms
The Garrett PD6500i Walkthrough Metal Detector has adjustable alarms in order to help it fit its surrounding environment. Alarm volume can be set to correspond to the detection size giving the operator ample warning of what to expect when escalating the search.
Tamper Resistant Icon Tamper Resistance Features
The Garrett PD6500i Walkthrough Metal Detector uses two levels of access codes to protect all of its settings. This prevents unauthorised access and is further secured by a cabinet lock which restricts access to cables, connectors and electronics.
Wide Detection Area Icon Wide 30” Doorway
The Garrett PD6500i Walkthrough Metal Detector is a large device with its height reaching well over 2 metres high and just shy of a metre wide. The interior metal detector door way is 30” wide which is more than enough for most people. A 32” ADA certified model is available at additional cost, call us on 01494 446965 if this is required.
Pass_Fail_Mechanism_icon Built-in Traffic Counter
This Garrett walkthrough metal detector has a built in traffic counter which eliminates the need of hand tally counters used by security staff if the venue is capacity restricted. They tally is prominently displayed and can be checked at any time.
Liquid Resistant Icon IP55 Rated
The Garrett PD6500i is IP55 rated which means that it can be subjected to light rain should it occur but its always best to cover the device from above to protect the electronics inside. An IP65 model is available at an additional cost, call us on 01494 446965 if this is required.
Certified_Icon Very Widely Tested & Certified
The Garrett PD6500i meets international airport standards such as TSA, ECAC, STAC, AENA, CJIAC, DFT. It also meets additional standards and requirements such as USMS, NIJ-0601.02, NILECJ. Meets Electrical Safety and Compatibility Requirements for CE, FCC, CSA, IEC, ICNIRP, IEEE.
Easy to Use Icon Fast 30 Minute Assembly
This walkthrough metal detector doorway is easy to build and should take less than 30 minutes. There are only 4 primary components and limited additional parts to worry about which makes life easy.
Mains Powered
The Garrett PD6500i is a mains powered metal detector door and requires a wired connection to a power source. While back up batteries are available (sold separately), they are focused on contingencies rather than being used as a primary power source.
Made_in_the_USA Made in the USA
All Garrett products are made at their factory in Garland, Texas in the United States of America.
Standard Programs Over 20 application programs included
Sensitivity Up to 200 distinct sensitivity levels
Optics 2 Infrared
Zone Indications 33 independent zones

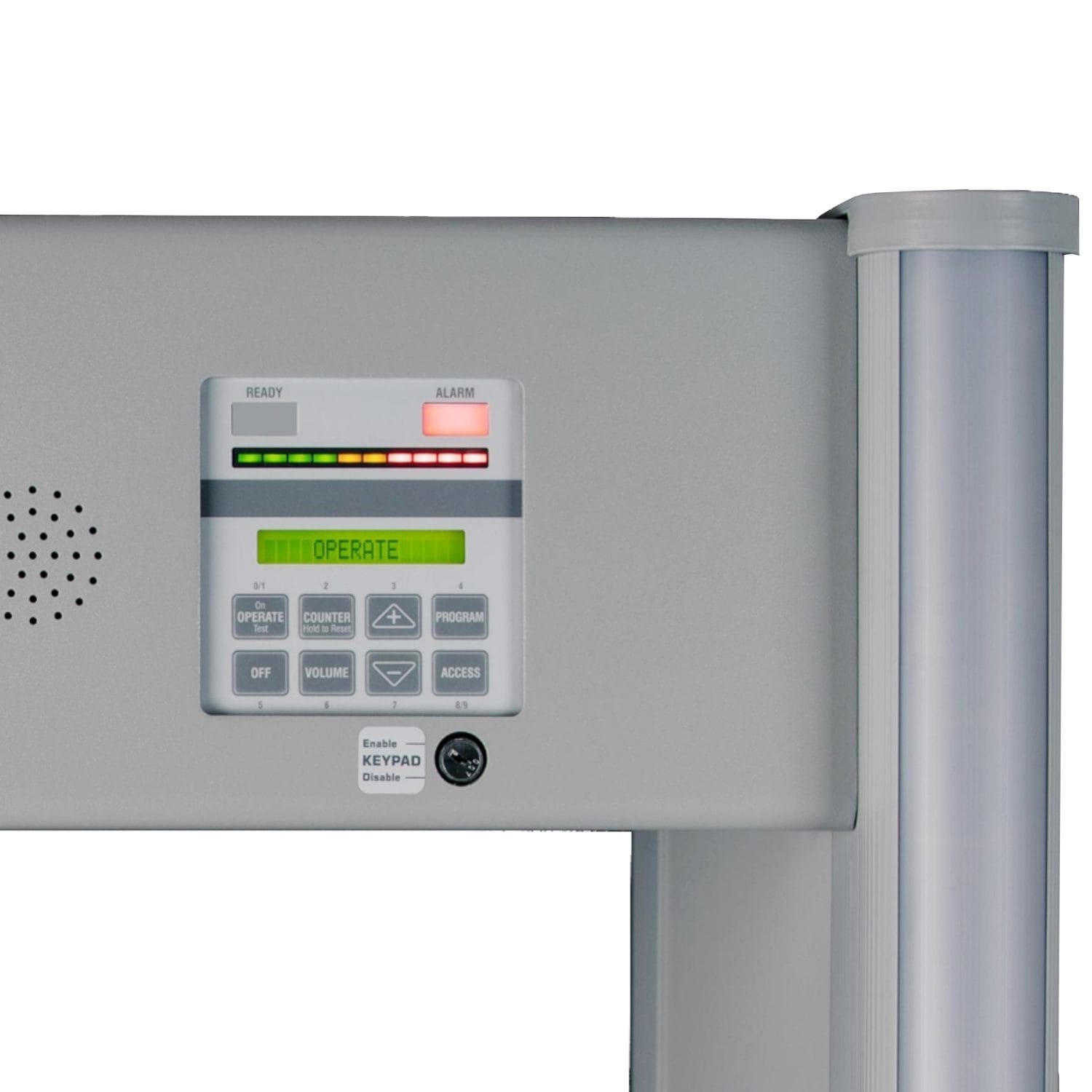

Overhead Control Unit All electronics—LCD, alarm light, LED bar graph, control touch pads— integrated to eliminate wire exposure.
Tamper-Proof Settings Three access levels of security clearance
Self Diagniositc Program Complete and automatic
Calibration Automatic and manual calibration
Initialization Time 1 second
Zone Sensitivity Boost Adjustable in six areas
Maxmium Pass Through Speed 15m/sec
Passageway Interior Size Width 30″ (0.76 m)
Height 80″ (2.03 m) Depth 23″ (0.58 m)
Overall Exterior Size Width 35″ (0.90 m)
Height 87″ (2.21 m) Depth 23″ (0.58 m)
Shipping Size Width 30″ (0.76 m) Height 80″ (2.03 m) Depth 23″ (0.58 m)
Shipping Weight 74 KG
Temperatures Operating: -4º F (-20º C) to +149º F (65º C)
Humidity to 95% non-condensing
Storage: -40º F (-40º C) to 158º F (70º C)
Power Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 45 watts;
no rewiring, switching or adjustments needed.
Regulatory Information Meets international airport standards such as TSA, ECAC,
STAC, AENA, CJIAC, DFT. Meets additional standards and
requirements such as USMS, NIJ-0601.02, NILECJ. Meets
Electrical Safety and Compatibility Requirements for CE,
FCC, CSA, IEC, ICNIRP, IEEE.
Weatherproofing Meets IP 55, IP 65, IEC 529 Standard for moisture, foreign
matter protection
Construction Attractive scratch and mar-resistant laminate. Detection
Heads and Support: heavy duty aluminum. Immunity to
electrical interference, ambient noise and mechanical
vibrations.
Control Outputs Solid state switches (low voltage AC or DC) for operating
external alarms and control devices.
Alarm Indicators 33 zones, volume-adjustable audible tone, bright
LED visual and remote alarms. Random alarm feature:
adjustable from 0 to 50 percent. Alarm proportional
with the mass of the detected object. 90 db alarm at a
1m distance.
Warranty 2 Years Manufacturers Warranty for Parts and Labour

Garrett PD6500i  Walkthrough Metal Detector User Instruction Manual

Garrett PD6500i Walkthrough Metal Detector Official Brochure
