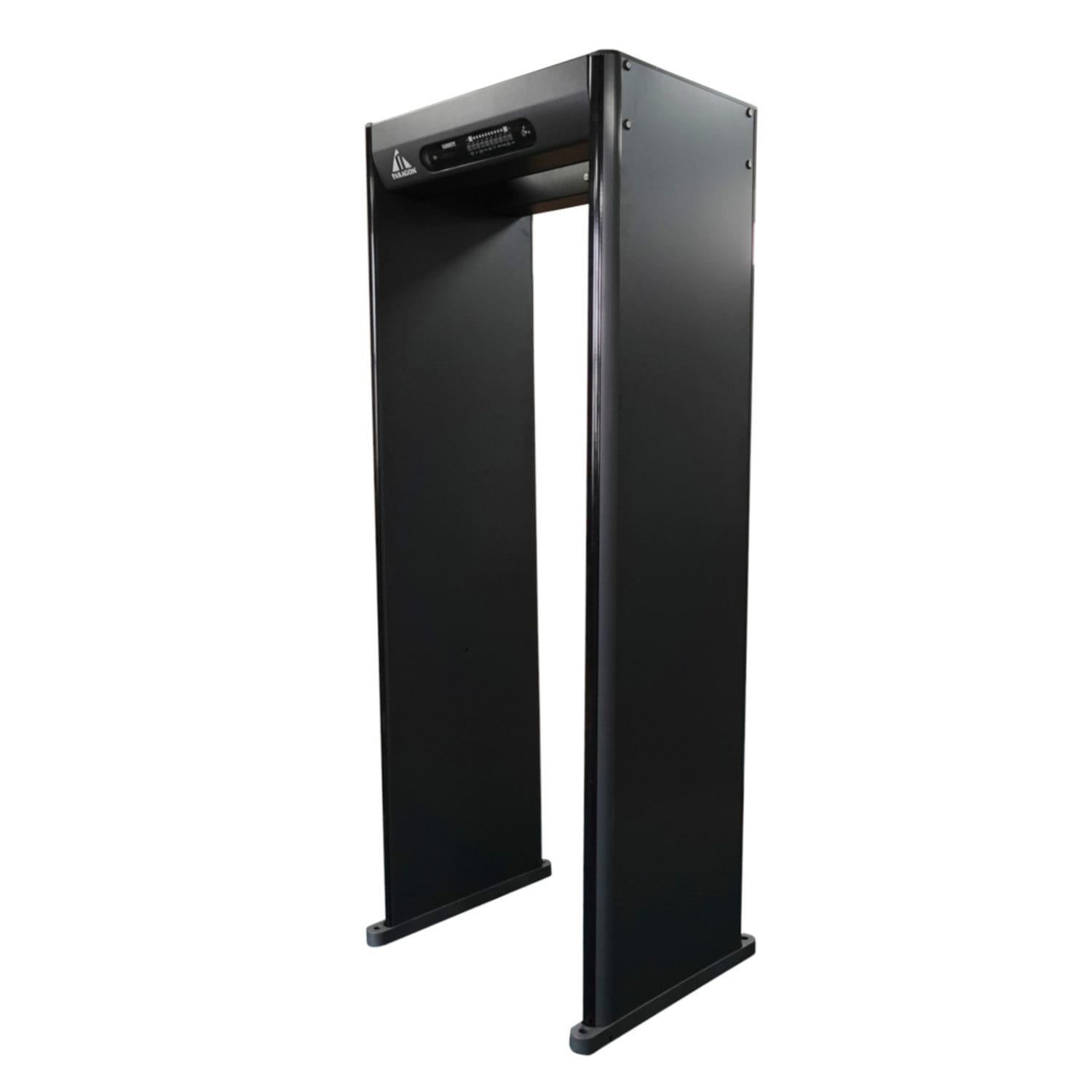

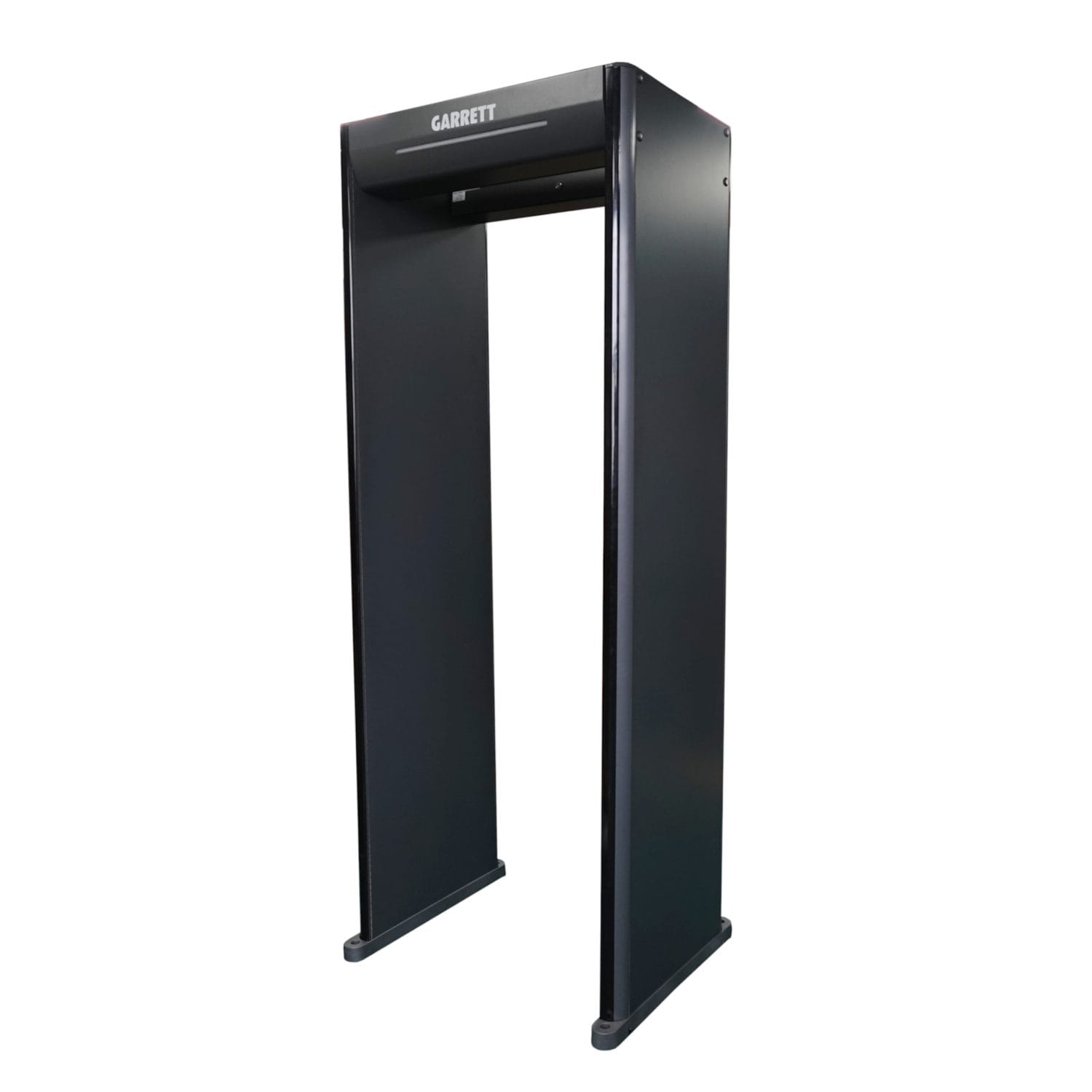

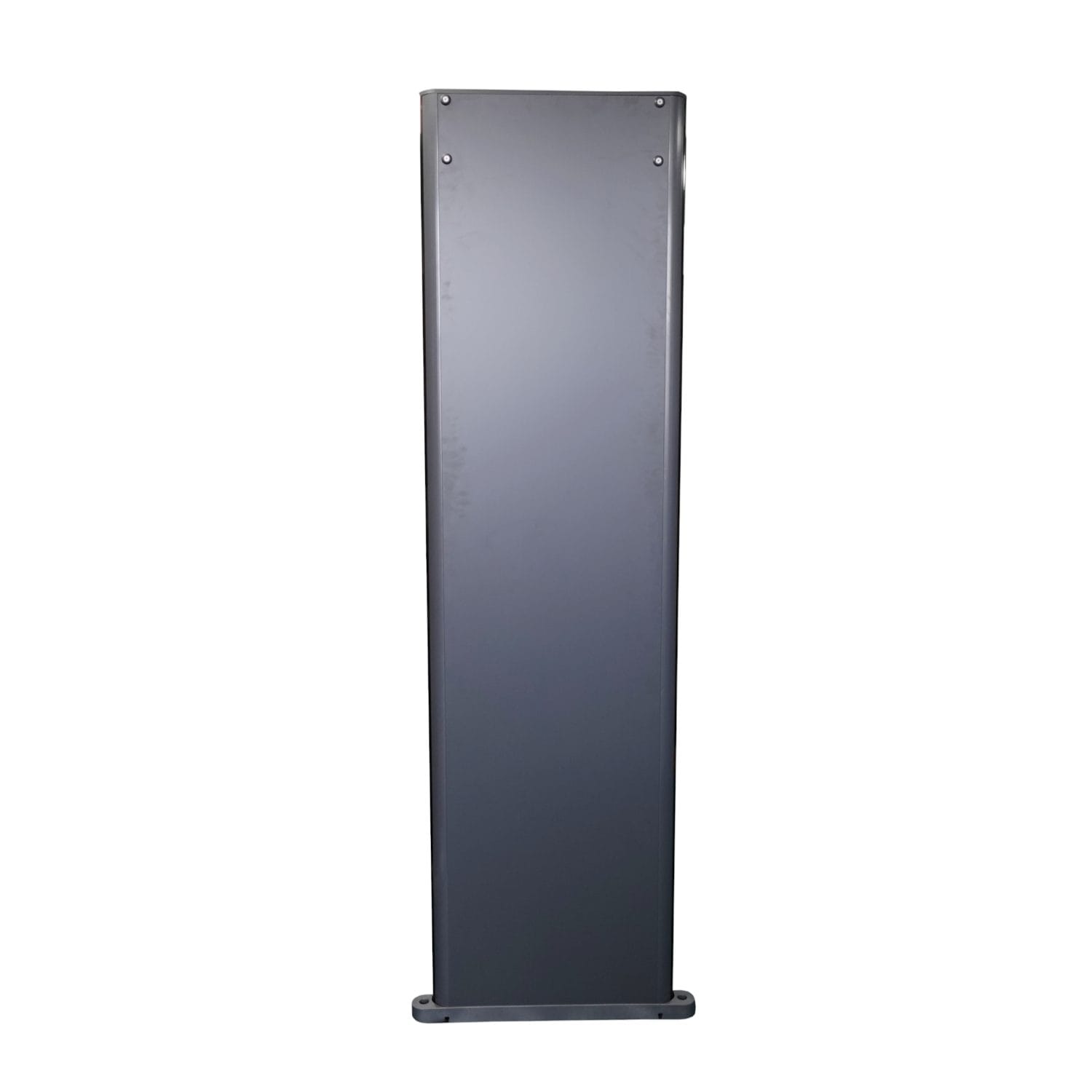

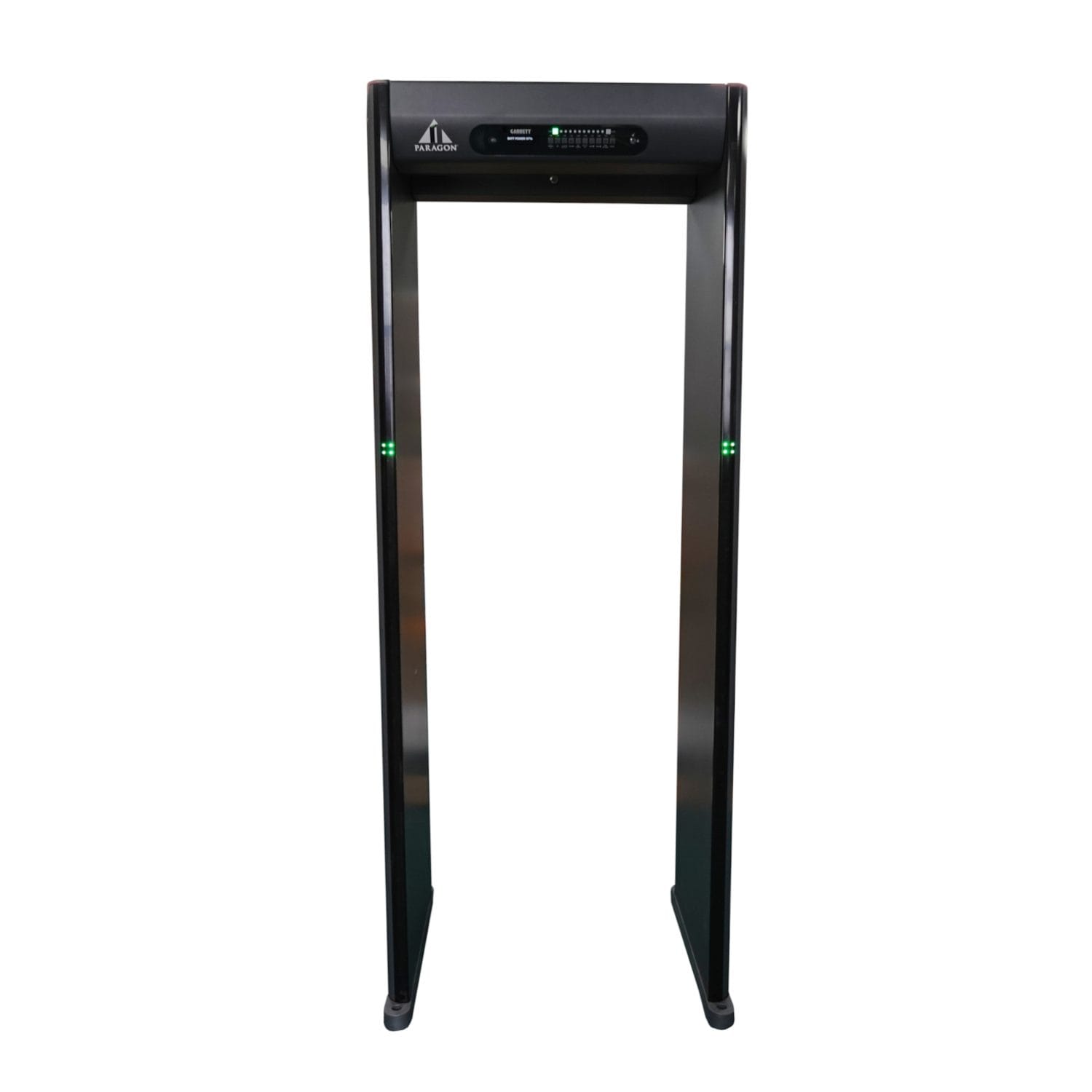

Garrett Paragon Walkthrough Metal Detector

SKU: GT-Paragon
  • Advanced Walkthrough Metal Detector
  • 66 Detection Zones
  • Customisable Sensitivity Scanner
  • Adjustable Alarms
  • Tamper-resistant Design
  • Cabinet Storage
  • 30” Wide Doorway
  • Built-in Traffic Counter
  • IP65 Rating
  • Dust and Light Rain Protection
  • Mobile Phone Discrimination
  • Main Powers (Emergency Battery Included)
  • Made in the USA
Availability: Get In Touch

We do not offer website purchases for this item but it can be bought from us directly by calling 01494 446965 or using the button below.

Availability:

1 in stock

£7,495.96 (Incl.VAT)

Variable Pitch Icon Advance Walkthrough
The Garrett Paragon Walkthrough Metal Detector provides a range of customizable features tailored to suit its operating environment. While other Garrett walkthrough metal detectors like the PD6500i are highly efficient, the Paragon’s advanced features allow for even greater accuracy, particularly in high-traffic areas such as airports, government buildings, event venues and more.
Targeted Zones Icon 66 Detection Zones

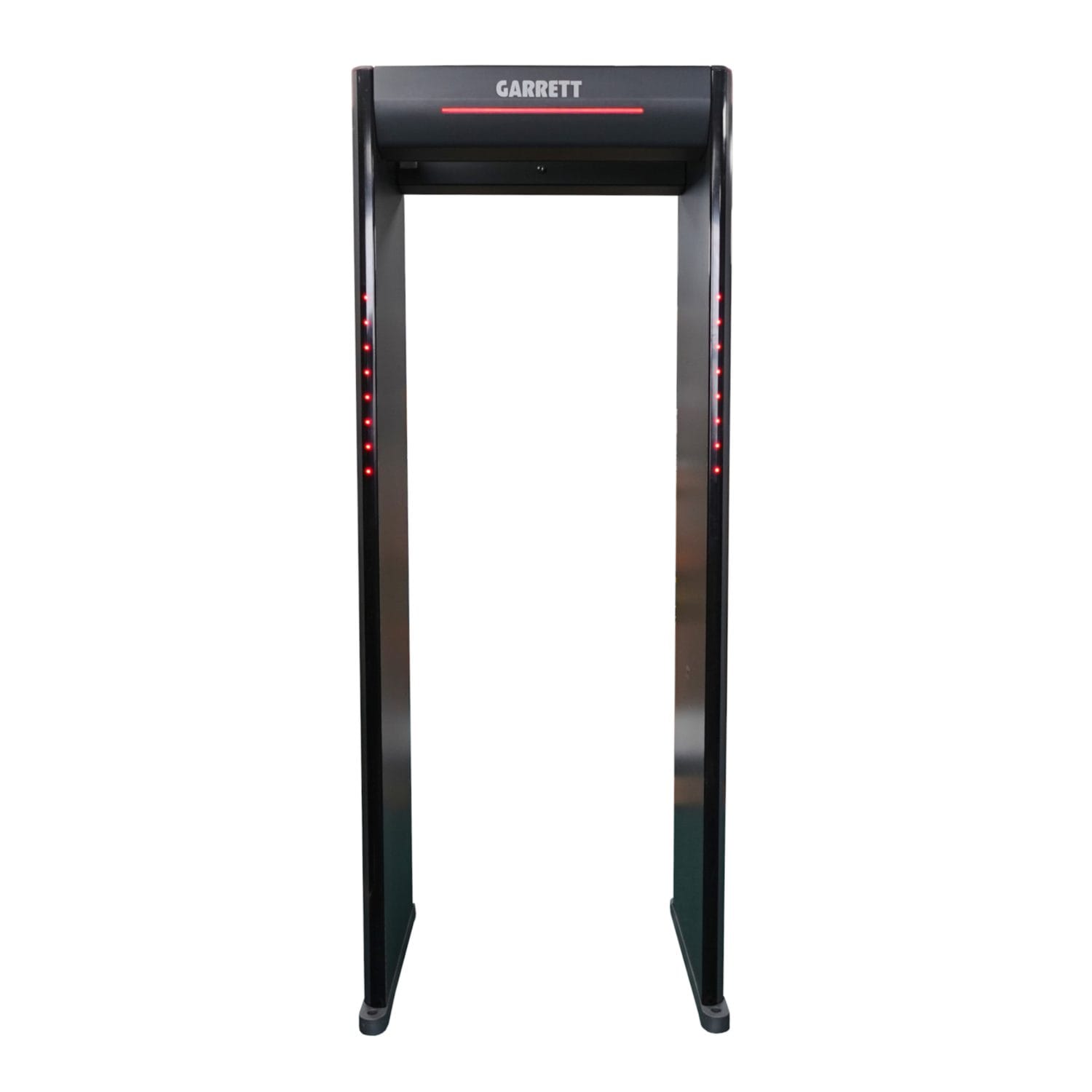

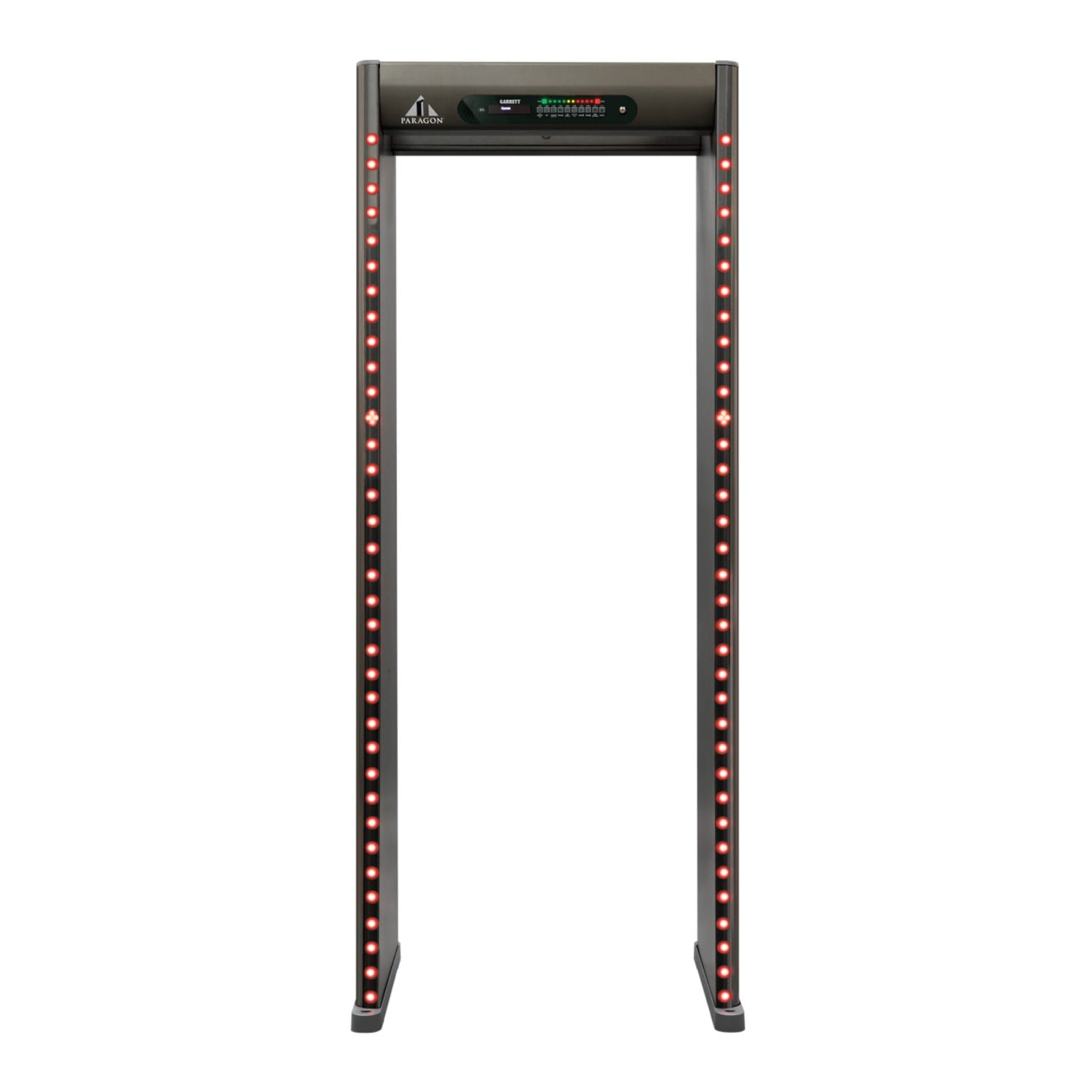

With 66 targeted detection zones illuminated by LED indicators, the Garrett Paragon Walkthrough Metal Detector offers precise identification of metallic objects on individuals, enhancing security screening efficiency. This feature is especially beneficial in busy environments.
Adjustable_Icon Fully Customisable Sensitivity
The sensitivity options of the Garrett Paragon Walkthrough Metal Detector are adaptable, allowing for precise targeting of particular sizes of metal associated with weapons or contraband. This customization facilitates the exclusion of irrelevant items, ensuring a screening process that is precise and streamlined.
Adjustable_Alarm Adjustable Alarms
The Garrett Paragon Walkthrough Metal Detector is equipped with adjustable alarm volume settings, enabling it to notify operators about the size of detected metal. This functionality facilitates prompt and suitable responses to potential threats.
Tamper Resistant Icon Tamper-Resistant Design
The Garrett Paragon Walkthrough Metal Detector incorporates three tamper-resistant elements such as access codes and cabinet locks to deter unauthorized access to settings and internal components, thereby upholding the integrity of security operations.

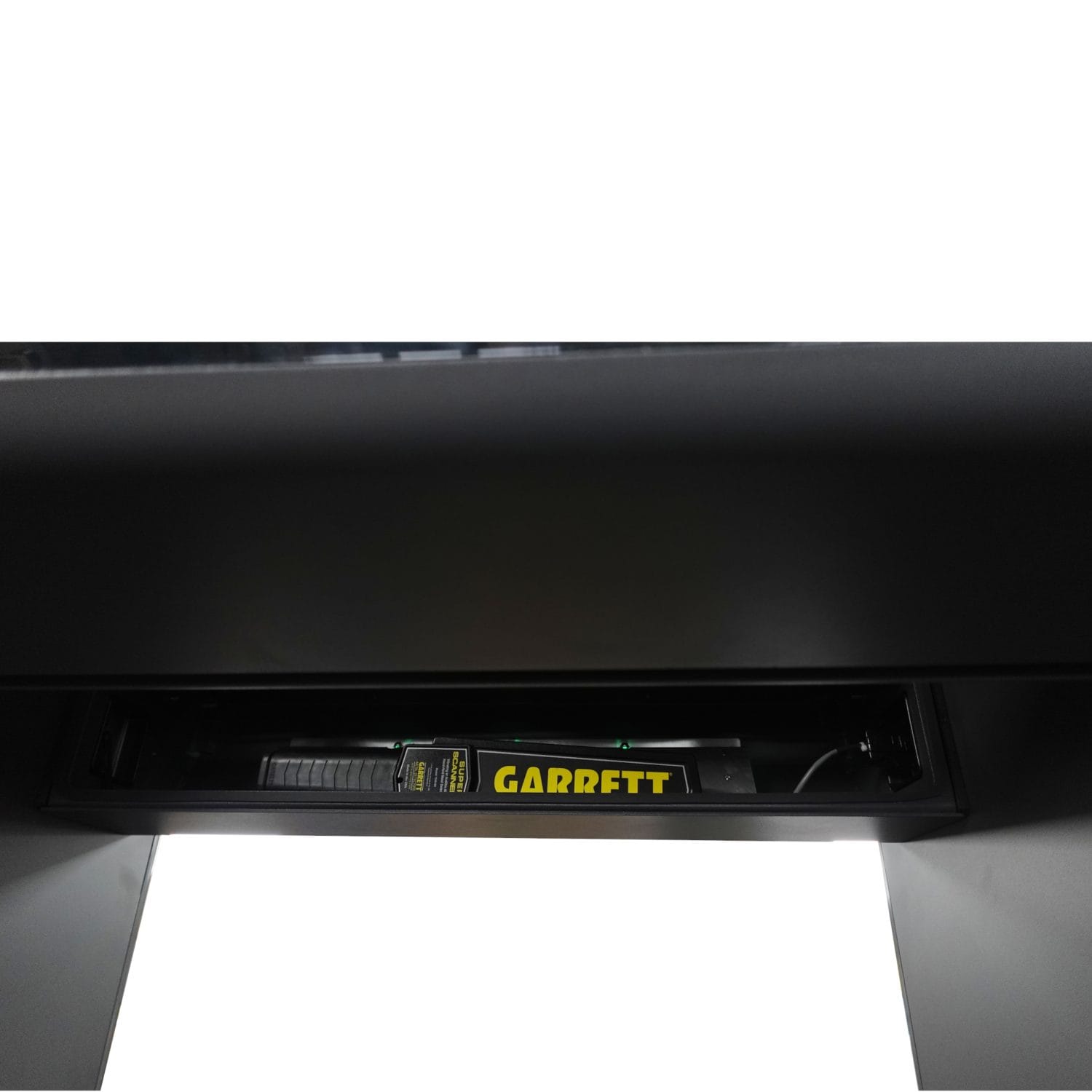

Cabinet Storage
The Garrett Paragon Walkthrough Metal Detector has a compartment that allows you to store and charge any handheld scanners.
Ambiscan
The Garrett Paragon includes a unique feature called Ambiscan, enabling operators to establish two separate sensitivities depending on the direction of traffic. This feature ensures comprehensive screening, allowing detection of weapons or contraband entering and stolen property exiting.
Wide Detection Area Icon 30” Wide Doorway
The Garrett Paragon Walkthrough Metal Detector accommodates individuals of all sizes with its 30” wide doorway, enhancing accessibility and efficiency during screening procedures. A 32” ADA certified model is available at additional cost, call us on 01722 444806 if this is required.
Pass_Fail_Mechanism_icon Built-in Traffic Counter
The Garrett Paragon Walkthrough Metal Detector has a built-in traffic counter that eliminates the need for manual tally counters, providing real-time data on throughput for efficient management of venue capacity.
Liquid Resistant Icon Rugged IP65 Rating
The Garrett Paragon Walkthrough Metal Detector has a IP65 rating, signifying its protection against dust and moisture infiltration. This is suitable for most indoor and outdoor enclosures that will not encounter any extreme weather such as water submersion.
Mobile Phone Discrimination
This setting on the Garrett Paragon Walkthrough Metal Detector is an optional setting that allows the operator to ignore mobile phones while still catching weapons, vapes and contraband.

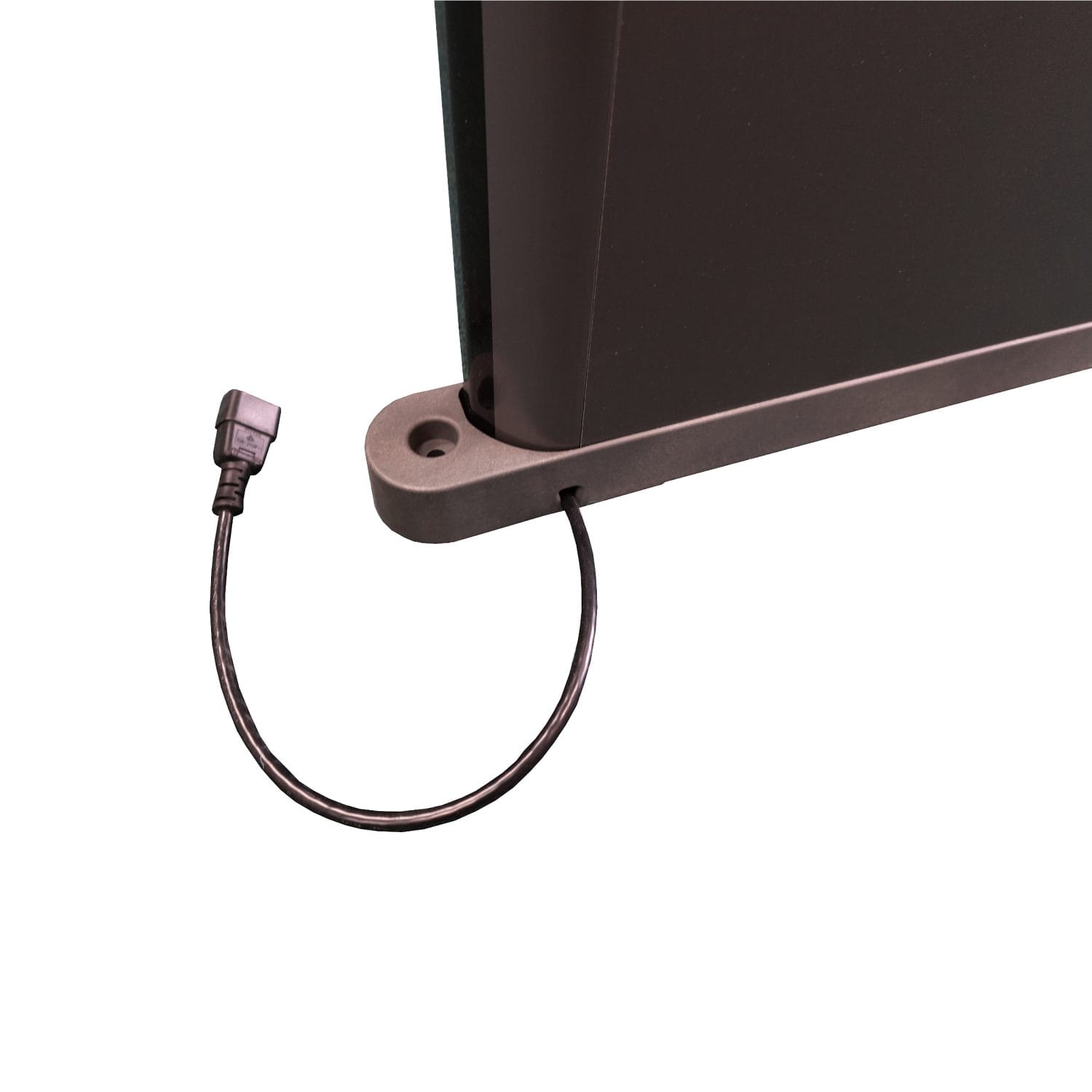

Mains Powered Icon Mains Powered & Emergency Battery
The Garrett Paragon Walkthrough Metal Detector provides flexibility with both battery and mains power options, making it suitable for areas lacking accessible power outlets. While the standard battery lasts up to 1 hour, an optional (separately available) battery extends operation to up to 10 hours. Both batteries will allow the metal detector to operate if a power outage occurs or AC becomes disconnected for a limited time.
Certified_Icon Widely Tested & Certified
The Garrett Paragon meets Electrical Safety and Compatibility Requirements for CE, FCC, CSA, IEC, ICNIRP, IEEE. Also design to meet international airport standards such as STAC, AENA, CJIAC, DFT, ECAC.
Made_in_the_USA Made in the USA
Manufactured in the United States, the Garrett Paragon Walk-Through Metal Detector upholds Garrett’s commitment to quality and reliability.
Internal Dimensions Width 30″ (32″ version available), Height 81″, Depth 23″
Overall Dimensions Width 35″, Height 89″, Depth 23″
Detection Zones 66 zones – left/center/right across 22 horizontal bands
Weatherproofing IP 65, IEC 529
Material/Construction Scratch/mar-resistant laminate – heads & support are heavy duty aluminium
Sensitivity 200 Sensitivity Levels
Cellphone Discrimination Yes
Assembled Weight 152lbs/69kg
Languages Over 10 available
Self-Diagnostic Program Complete and Automatic

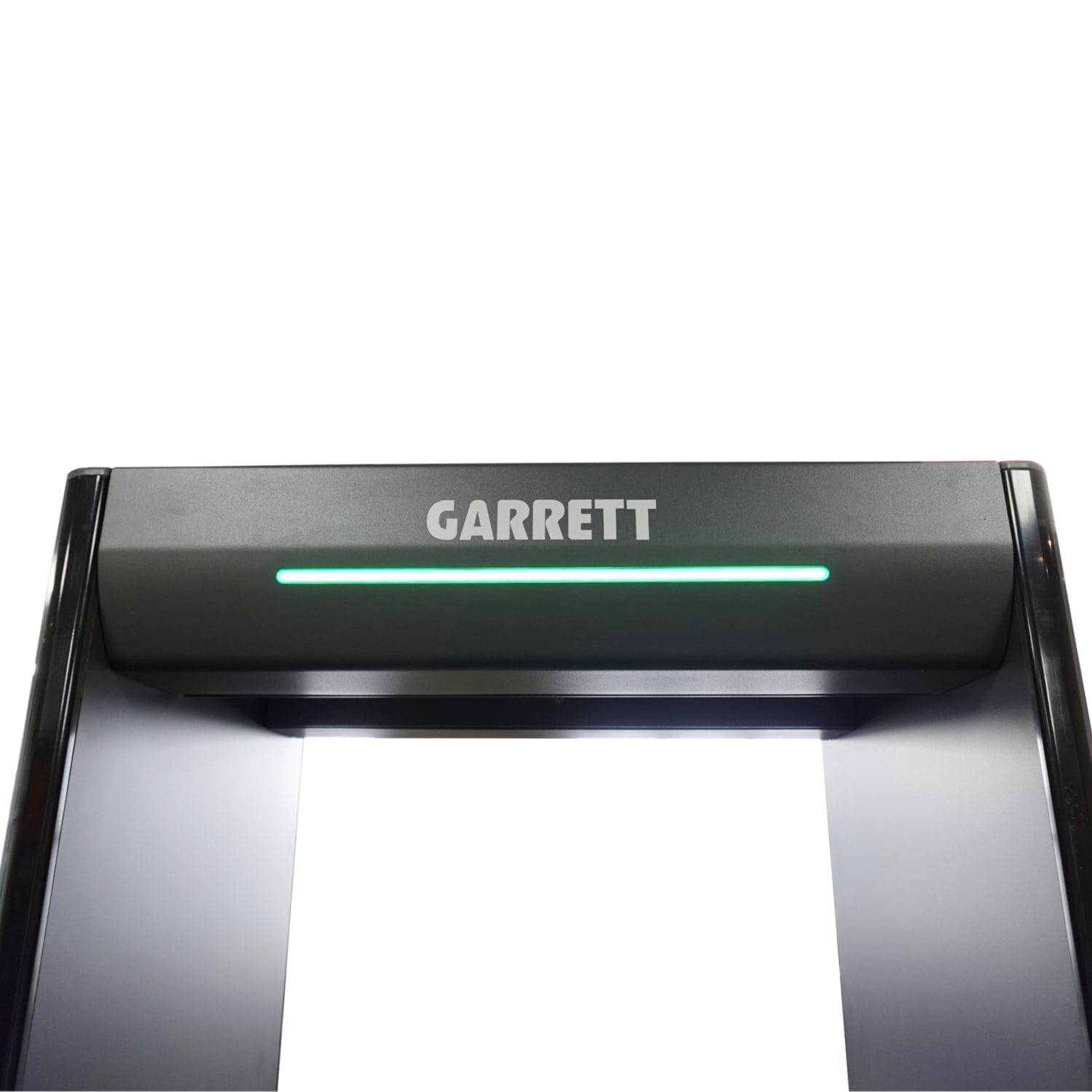

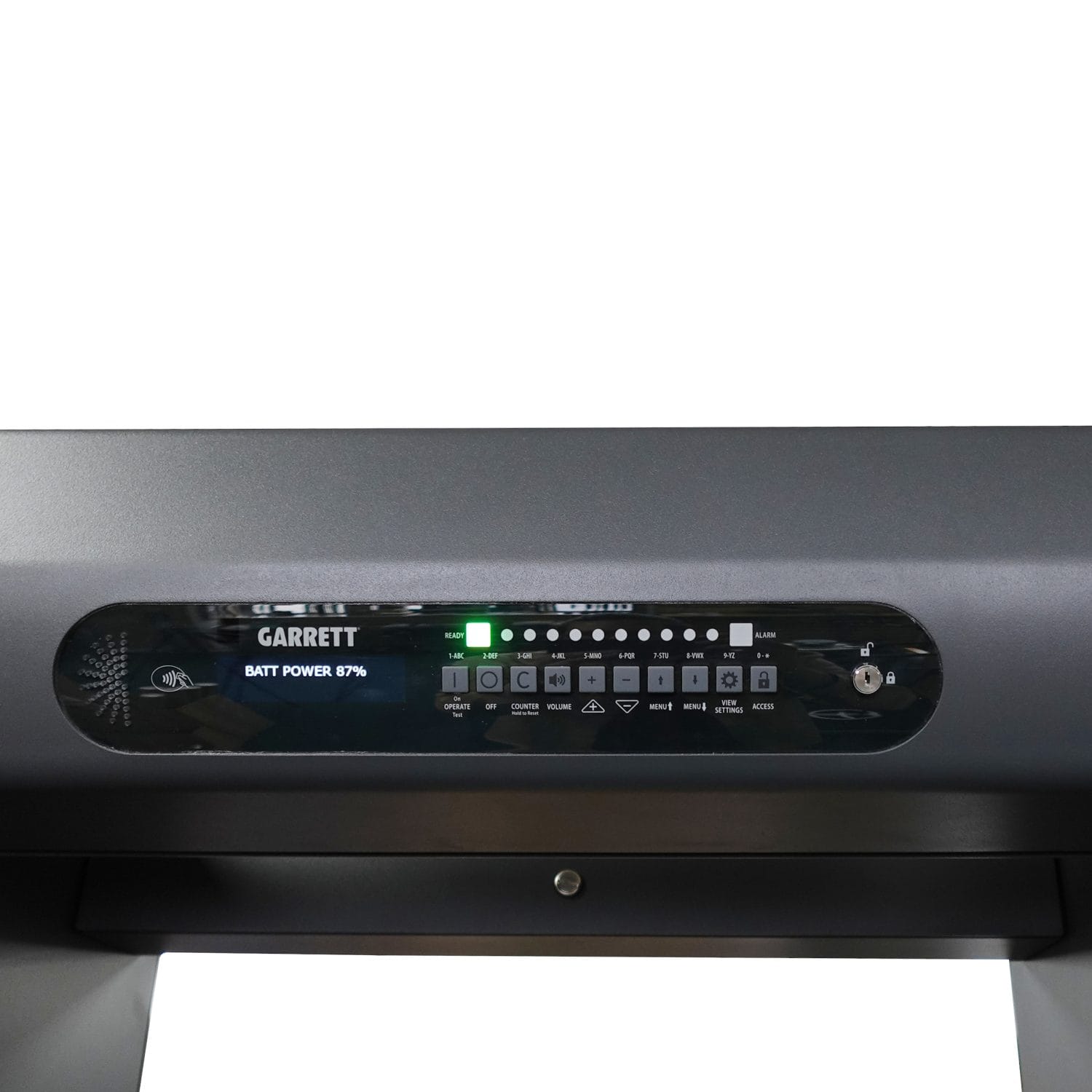

Overhead Control Unit LED, alarm light, bar graph, control touch pads integrated to eliminate tampering
Power Output & Integrated UPS (Uninterruptible Power Supply) Fully automatic 100 to 240 VAC~± 10%, 50 or 60 Hertz, 60 watts; no rewiring, switching or adjustments needed & 1.8 amp-hour battery module for emergency 1 hour operating time
Tamper Proof 3 levels of access control
Random Alarm Feature Yes: 0 – 100%
Standard Programs Over 23
NFC Card Reader Yes, ” Zero Touch™ ” – secure settings adjustment without mechanical insertion, less wear
Ambiscan™ Different detection targets on egress vs ingress
Bilateral Detection Superior target anaysis to single-sided detection
Regulatory Information Meets Electrical Safety and Compatibility Requirements for CE, FCC, CSA, IEC, ICNIRP, IEEE. Design to meet international airport stardards such as STAC, AENA, CJIAC, DFT. ECAC certifications pending
Temperatures Operating on AC: (-20º C) to  (55º C), Battery operation: (-10º C) to (60º C), Humidity to 95% non-condensing, Storage: (-30º C) to (80º C), Battery storage: (-10º C) to (80º C)
Zone Sensitivity Boost 22 Infependently Adjustable Boosts
