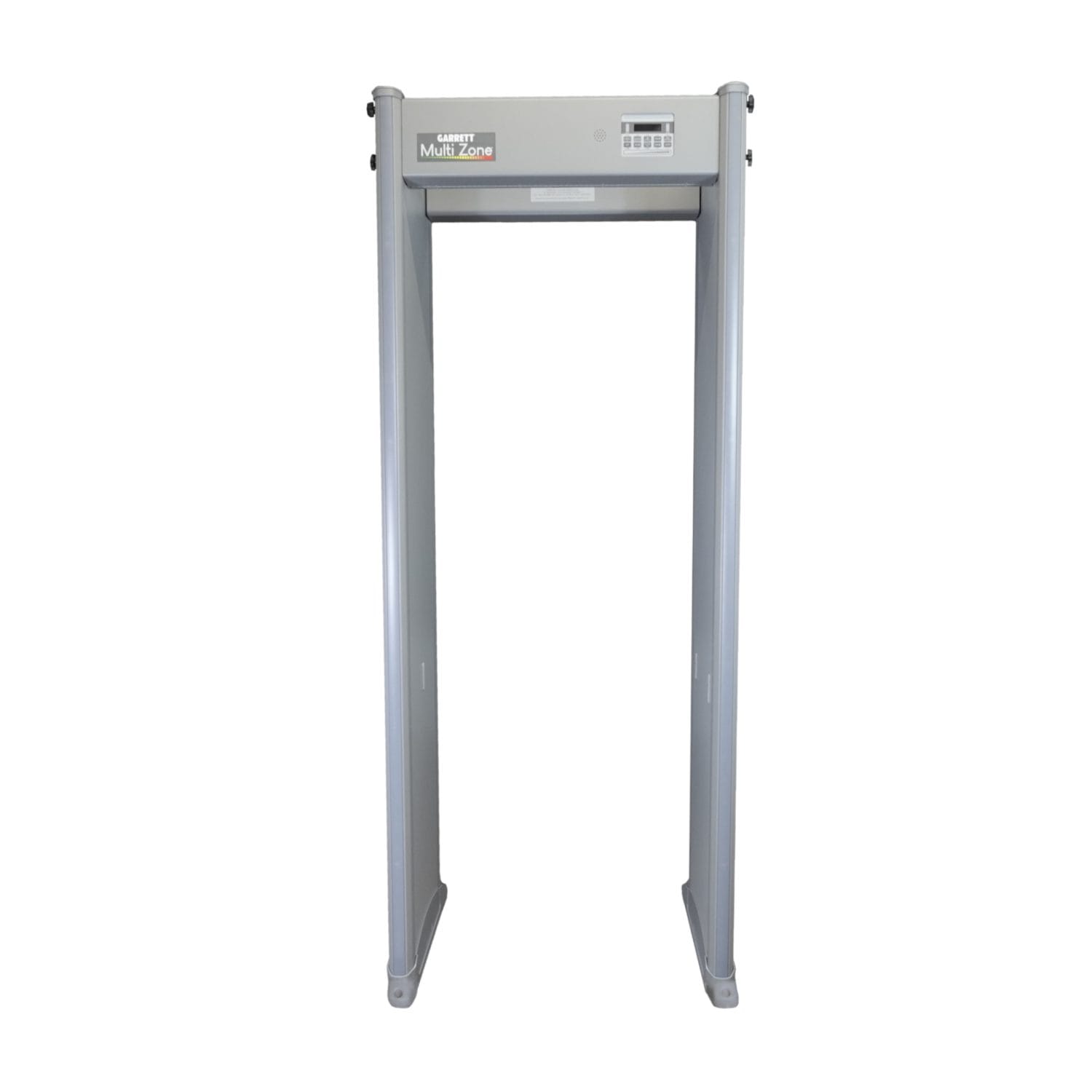

Garrett Multi Zone Walkthrough Metal Detector

SKU: GT-MULTIZONE
  • 20-Zone Precision
  • Directional Counter
  • Emergency Back-up Battery Module
  • Screen Slider Bar
  • Up To 200 Distinct Sensitivity Levels
  • IoT Control Module (sold separately)
  • Adjustable Alarms
  • Bright LEDs
  • Tamper Proof
  • Over 10 Languages
  • Robust & Easy Assembly
  • IP55 Rated
  • 30” Wide Doorway
  • User-friendly Screen
  • Compliance with Industry Standards
  • Made in the USA
Availability: Get In Touch

We do not offer website purchases for this item but it can be bought from us directly by calling 01494 446965 or using the button below.

Availability:

1 in stock

£3,995.00 (Incl.VAT)

Variable Pitch Icon Multi Zone Walkthrough Metal Detector
Garrett’s Walkthrough Metal Detectors, much like their handheld counterparts, are used across the globe. The Multi Zone walkthrough offers an array of functionalities, including 20 zone detection, adjustable sensitivity levels reaching up to 200, an optional IoT Control Module (available separately), and additional features. These knife arches are used in various settings such as government facilities, educational institutions, event arenas, and correctional facilities.
Targeted Zones Icon 20 Zone Detection

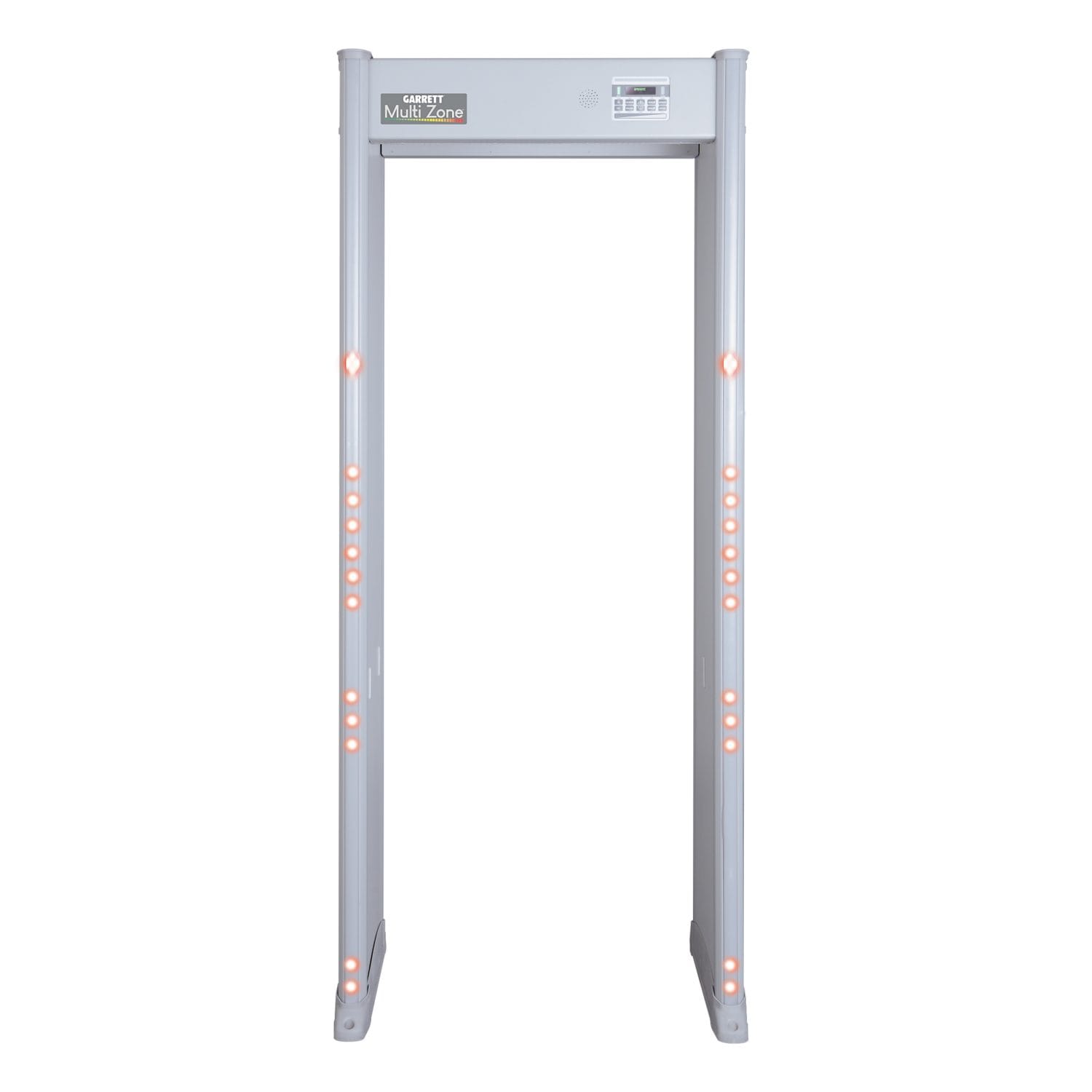

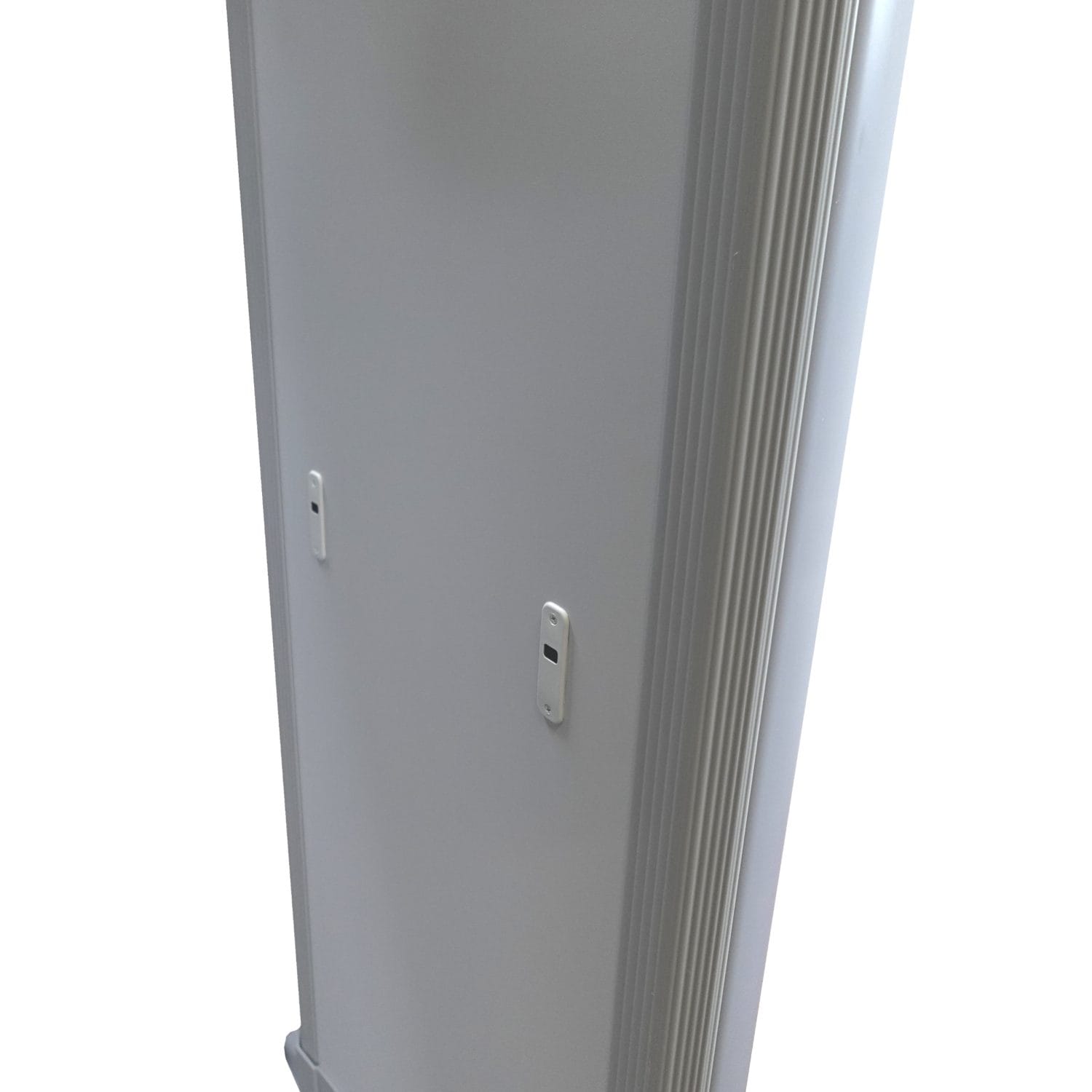

The Garrett Multi Zone Walkthrough Metal Detector is equipped with 20 detection zones, enhancing the precision of locating detected metal objects. This increased accuracy helps provide operators with improved security screening procedures and reducing missed items. Depending on what the operator is searching for, one or both sides of the metal detector will show bright LEDs indicating where the object/metal is.
Adjustable_Sensitivity_Metal_Detector Customizable Sensitivity Levels
Operators can customize the sensitivity levels of the Garrett Multi Zone Walkthrough Metal Detector to target specific sizes of metal objects. This enables the detector to filter out non-threatening items while effectively detecting potential security threats.
Adjustable_Alarm Adjustable Alarms
The Garrett Multi Zone Walkthrough Metal Detector features adjustable alarms that can be customized to suit the surrounding environment. By aligning the alarm volume with the size of detected metal objects, operators can anticipate the level of threat and escalate the search accordingly.
Robust and Durable Icon Robust & Easy Assembly

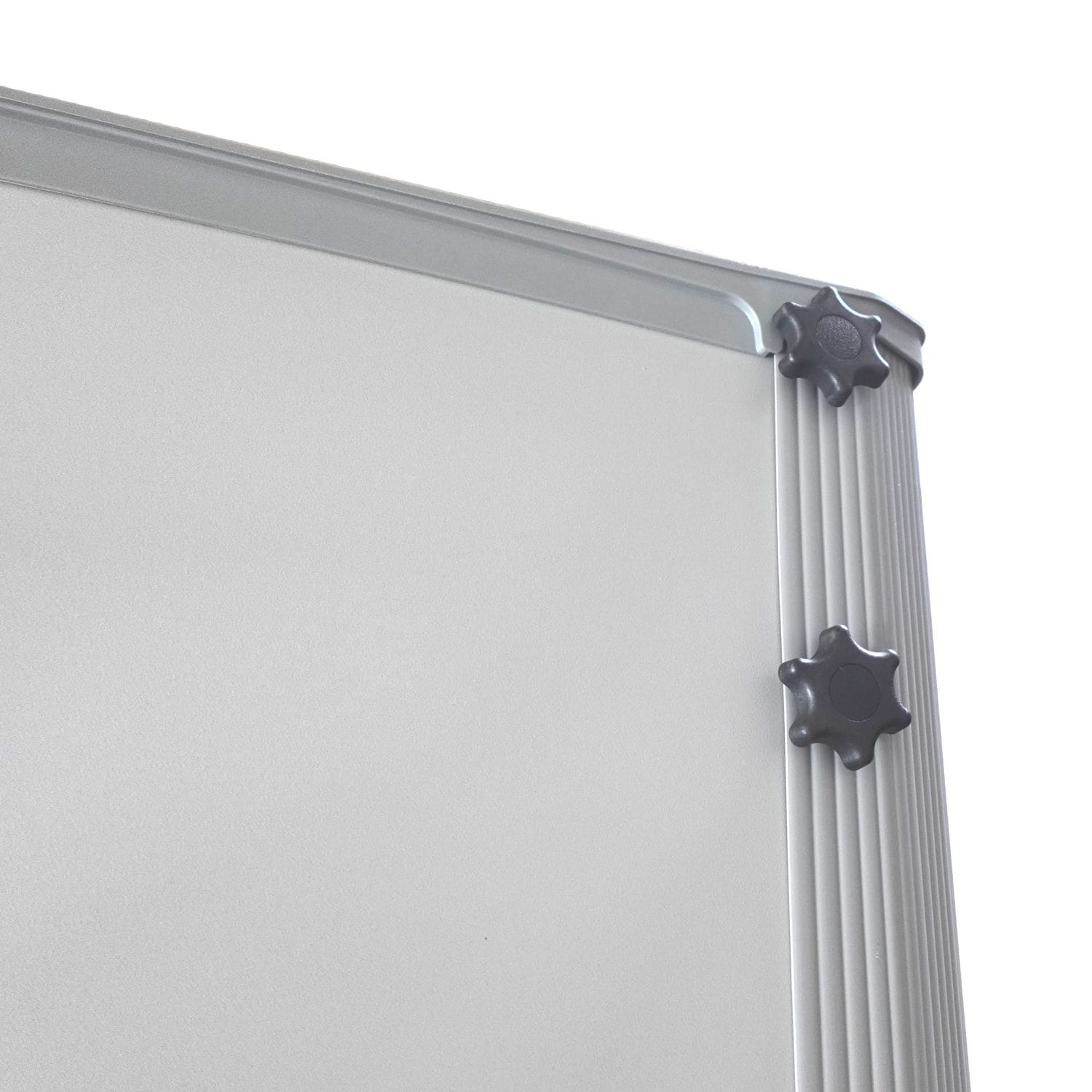

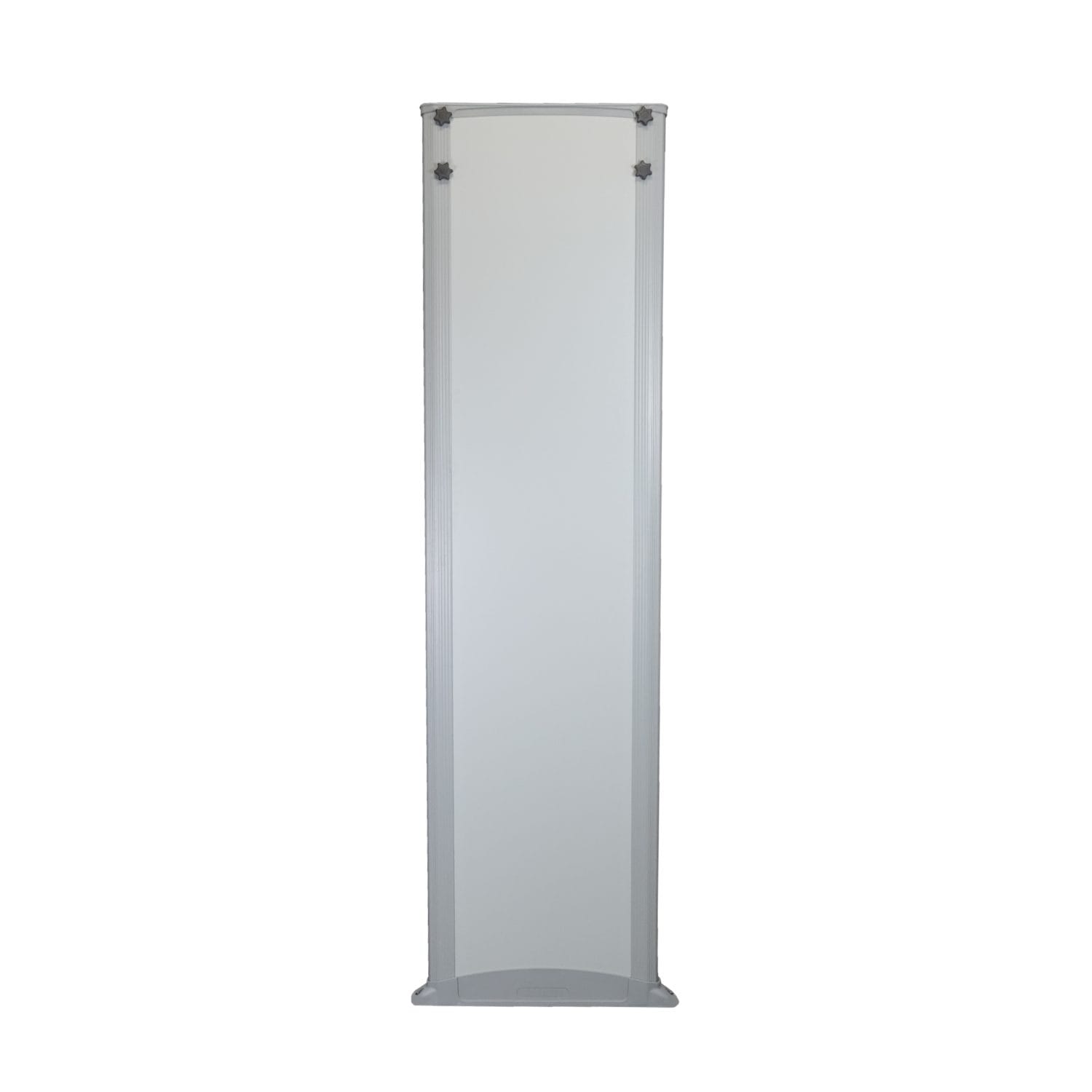

The Garrett Multi Zone Walkthrough Metal Detector is made from heavy duty aluminium and scratch/mar-resistant laminate, meaning it’s durable and can be used daily without compromising the surface metal detector. This walk through is easy to assemble only having 4 panels, 8 screws and 3 internal cable connections.
Easy to Use Icon User-Friendly Interface

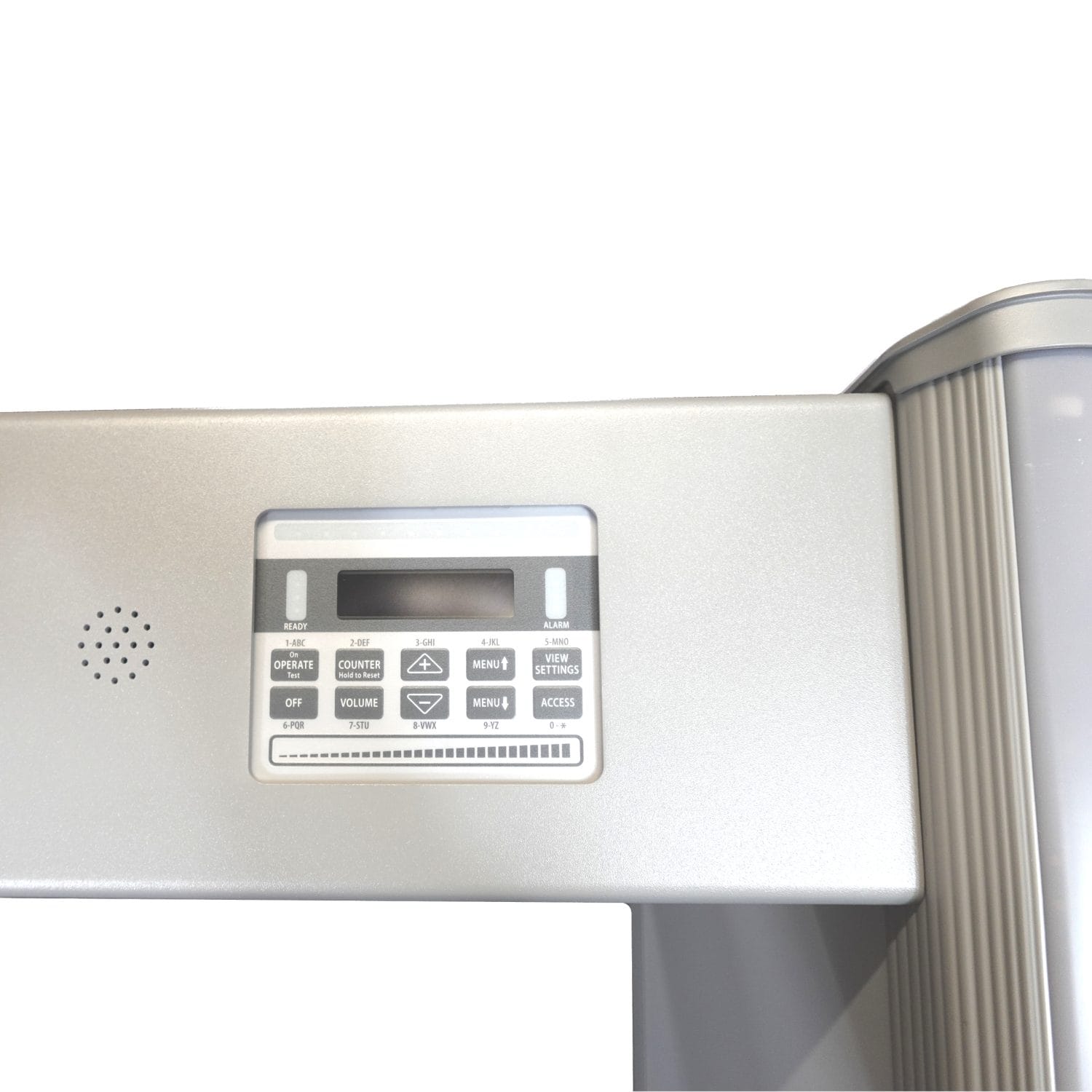

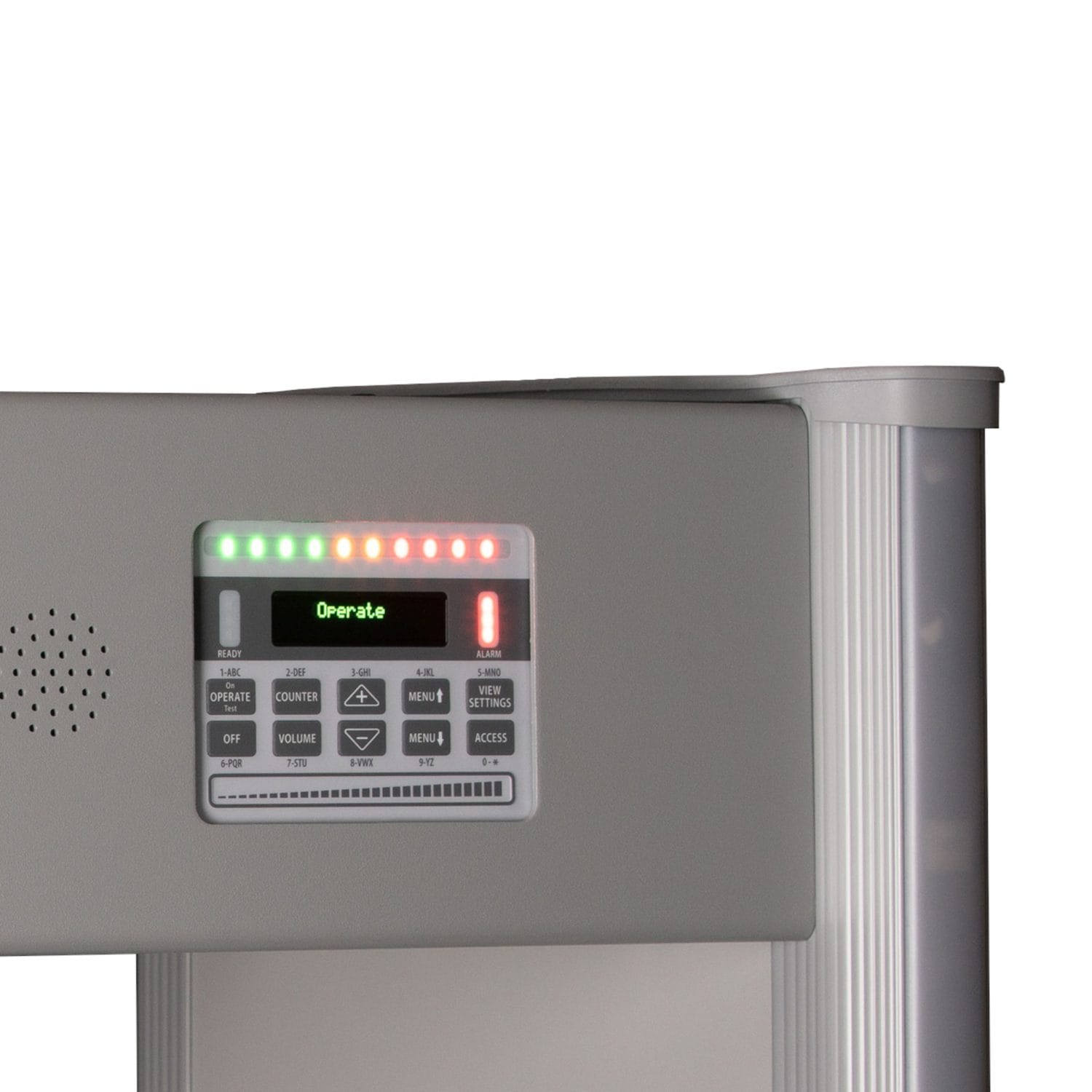

Featuring a user-friendly interface, the Garrett Multi Zone Walkthrough Metal Detector is easy to operate for security personnel of all skill levels. It comes with a slider on the keypad that allows the user to quickly adjust the value of a setting.
Wide Detection Area Icon Wide 30″ Doorway
The Garrett Multi Zone Walkthrough Metal Detector ensures accessibility for individuals of all sizes during screening procedures. This security walkthrough metal detector follows the international standard with a 30” wide doorway style. However, an ADA-certified model with a 32” width is available at an additional cost. For inquiries, please contact us at 01494 446965.
Certified_Icon Compliance with Industry Standards
The Garrett Multi Zone Walkthrough Metal Detector complies with industry standards and regulations, ensuring that security screening procedures meet international requirements. Meets Electrical Safety and Compatibility Requirements for CE, FCC, CSA, IEC, ICNIRP, IE
Mains Powered Icon Mains Power & Emergency Back-up Battery Module
The Garrett Multi Zone Walkthrough Metal Detector is mains powered with the option to be used with batteries. Included is an Internal 1.5 amp-hour lithium battery that provides approximately 1 hour of emergency power. And an optional 14 amp-hour lithium battery provides approximately 10 hours of operation.
Liquid Resistant Icon IP55 Rated
The Garrett Multi Zone has an IP55 rating, indicating its ability to withstand light rain if it occurs and dust. However, it’s advisable to provide overhead coverage to protect the internal electronics and helps maintain the metal detector.
Made_in_the_USA Made in the USA
The Garrett Multi Zone Walkthrough Metal Detectors are produced at their manufacturing facility located in Garland, Texas, United States.
Internal Dimensions Width 30″, Height 80″, Depth 23″
Overall Dimensions Width 35″, Height 89″, Depth 23″
Shipping Weight 151lbs/68.5kg
Detection Zones 20 Zones
Weatherproofing IP 55, IEC 529
Material/Construction Scratch/mar-resistant laminate – heads & support are heavy duty aluminium
Sensitivity Up To 200 Distinct Sensitivity Levels
Languages Over 10 Available
Self-Diagnostic Program Complete and Automatic
Overhead Control Unit LED, alarm light, bar graph, control touch pads integrated to eliminate tampering
Power & Battery Backup Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 40 watts; no rewiring, switching or adjustments needed & 1.5 amp-hour lithium battery provides approximately 1 hour of emergency power
Tamper Proof 3 levels of access control
Random Alarm Feature Yes: 0 – 100%
Standard Programs Over 15
Regulatory Information Meets Electrical Safety and Compatibility Requirements for CE, FCC, CSA, IEC, ICNIRP, IEEE. Additional certifications pending.
Temperatures Operating on AC: (-20º C) to (60º  C), Battery operation: (-10º C) to (60º C), Humidity to 95% non-condensing, Storage: (-30º C) to (80º C), Battery storage: (-10º C) to (80º C)
Zone Sensitivity Boost 20 Independently adjustable boosts
Enhanced Access Control Tamper-free detector controls via a 5-digit alpha/numeric system that has 60 million code combos. Programmable keypad restriction switch secured in the lockable cabinet
Auto-Scan Function The Multi Zone scans electromagnetic environment and selects optimal frequency for noise cancellation.
